Description

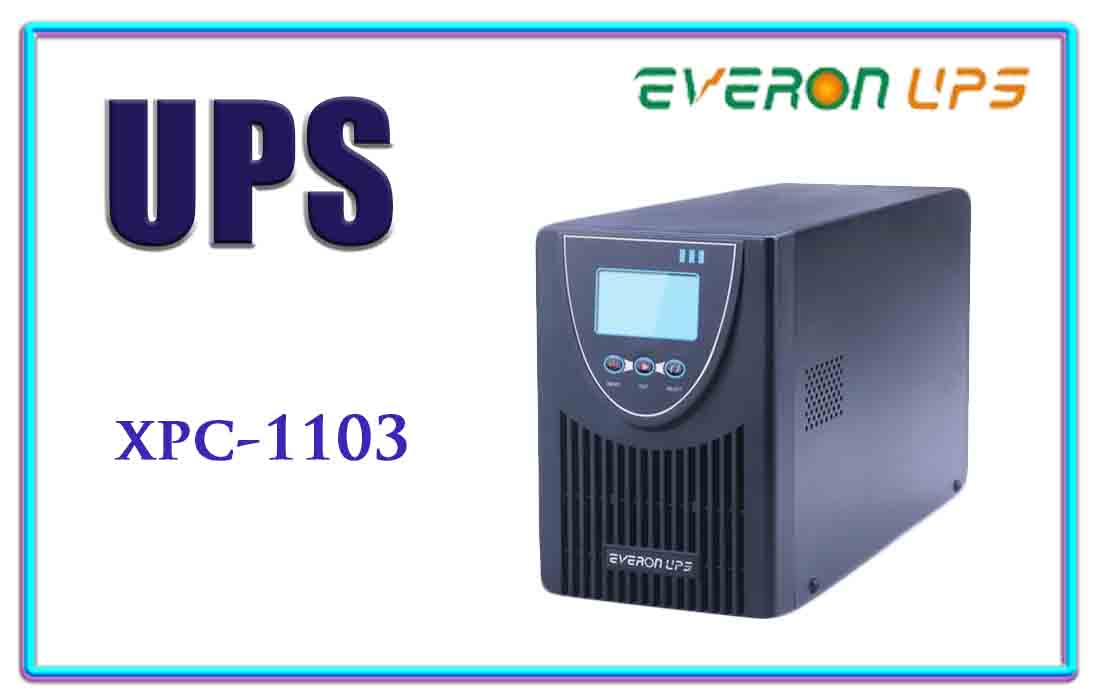

| Model | XPC 1103 |
|---|---|
| Rated Power | 3KVA/2400W |
| Phase | L+N +G |
| Input Voltage | (110±5 to 296±5)Vac |
| Input Frequency | (45±0.5 to 55±0.5)Hz |
| Input PF | >0.98 |
| Bypass Voltage | (80±5 to 264±5)Vac |
| Output Voltage | 220/230/240Vac±2% |
| Output Power Factor | 0.8 |
| Output Frequency | 45Hz~55Hz, same with utility power; <45Hz and >55Hz, lock 50Hz Battery mode: 50/60(1±0.2%)Hz” |
| THD | THD<3% (linear load)~THD<5% (Non-linear) |
| Transfer Time | Normal to battery mode: 0ms, Bypass mode to normal : 0ms |
| Overload Capability | 105±5%<Load<150±5%: 30s to bypass; >150±5%: 300ms to bypass; |
| Battery Voltage | 96Vdc |
| Backup Time (Full/Half Load) | >5min(depends on battery capacity for L type) |
| Charging voltage | 110±1V |
| Overvoltage | 115.2V |
| Charging Current | 1A/7A(L type can set the charging current) |
| Restart | After turning off due to cut off voltage of battery, UPS will restart, when voltage is in (175±5~286±5Vac) and frequency is in (45~55Hz) |
| Efficiency | >90% |
| Communication | RS-232 + Intelligent Slot |
| Noise (1m front) | <50dB |
| Operation Temperature | 0°C to 40°C |
| Humidity | 0~95% non-condensing |
| Storage Temperature | -40°C to 50°C |
| Altitude | 1000m |
| Dimension(W*D*H mm) | 195*455*330 |
| Net Weight(kg) | 33 |
