Description

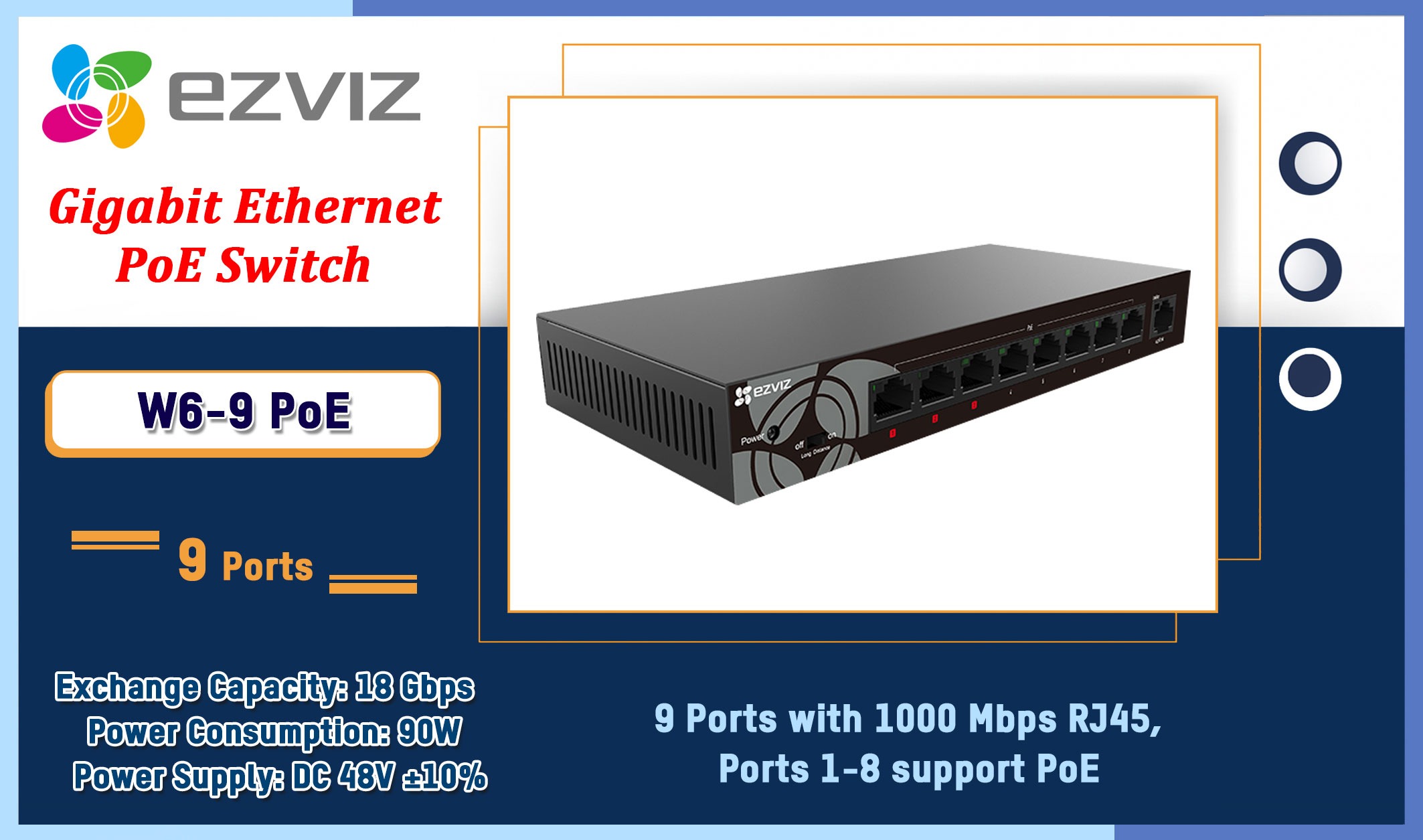

| Model | W6-9 PoE | |
|---|---|---|
| Model | CS-W6-SD09GP | |
| General | ||
| Number of Ports | 9 | |
| Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at | |
| Ports | 9 Ports with 1000 Mbps RJ45, ports 1-8 support PoE | |
| Exchange Capacity | 18 Gbps | |
| Power Consumption | 90W | |
| Power Supply | DC 48V ±10% | |
| Dimensions | 196 × 95 × 27 mm (7.72 × 3.74 × 1.06 inch) | |
| Packaging Dimensions | 286 × 238 × 77 mm (11.26 × 9.37 × 3.03 inch) | |
| Power Cable Length | 2.5 m (8.2 ft.) | |
| Weight | 375 g (0.83 lb) | |
| Operating Conditions: | ||
| Temperature | 0°C to 40°C (32°F to 104°F) | |
| Humidity | 90% or less | |
| Certifications | ||
| Certifications | UL / FCC / CE / RoHS / REACH / WEEE | |
