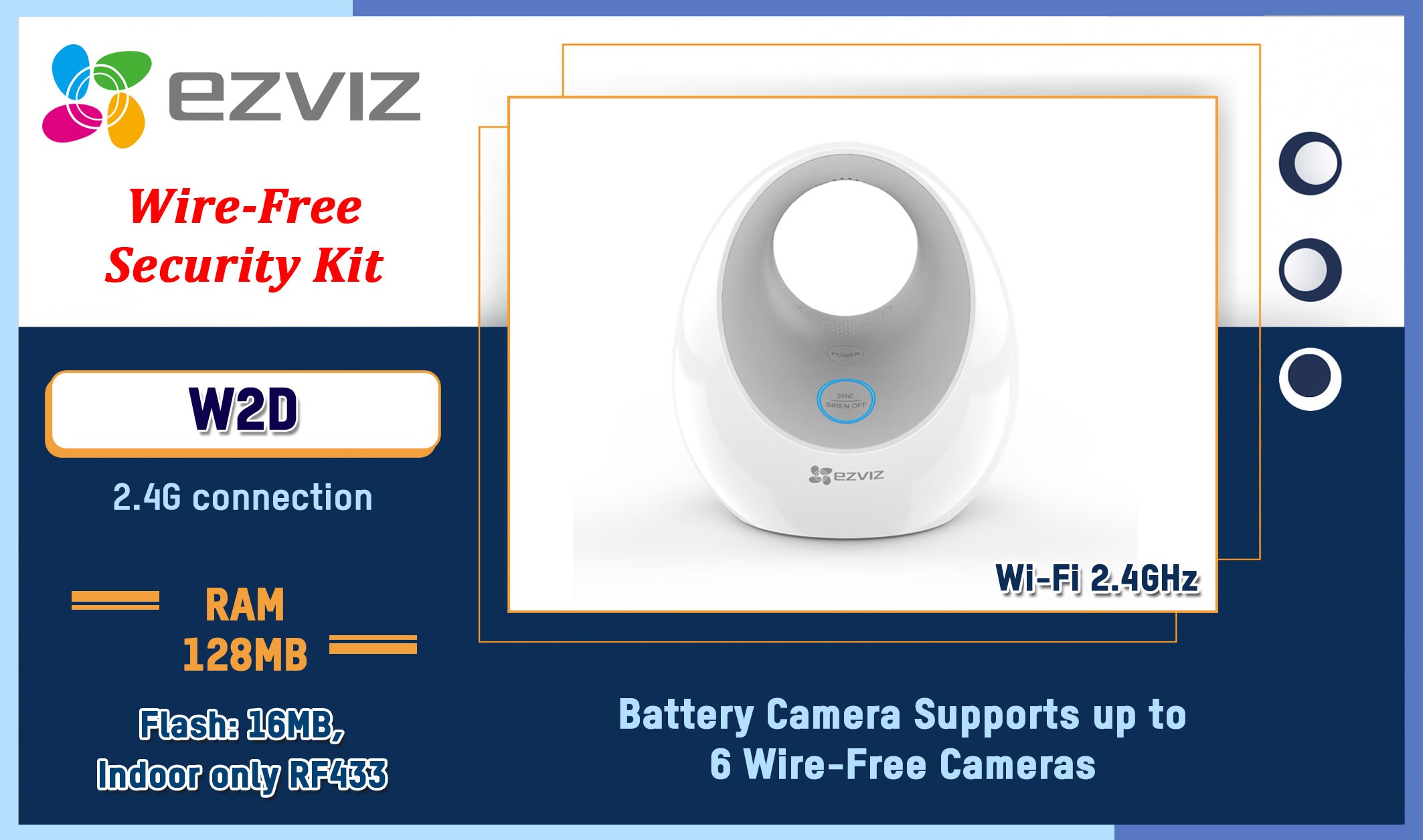

W2D

EZVIZ-Logo COLOMBO CCTV

Key Features

  • Supports access up to 6 cameras
  • Extend the coverage for wire-free Cameras
  • 100 decibel siren on the base station
  • Wired connection to router

Description


Datasheet: W2D

Model W2D

Network Interface

1 RJ-45 10/100Mbps Self-adaptive Ethernet WAN interface.

Wireless Interface

Support 2.4G connection. The actual available channels vary accord- ing to the sales area regulations. Theoretical maximum rate is 144M at 802.11b/g/n.
Support Sub-1G connection with Low-Power Private Protocol. Working Band of 433M/868M/915M and available channels vary according to the sales area regulations.

Battery Camera

Support up to 6 C3A Wire-Free Cameras

CPU

Qualcomm @ 650 MHz (Maximum)

RAM

128MB

Flash

16 MB

Alarm Siren

Supported

Antenna

2.4G: 2 internal @ 2dB max Sub-1G: 1 internal

Indicator

One System LED One WAN Port LED

Button

One SYNC button.
One Power button.
One Reset button, hold 10 seconds to RESET.

Power

DC 5V 2A,
typical power consumption < 10watts
The adapter supports a wide voltage range,expected 100V~240V

Working Temperature and Humidity

0 oC to +40 oC, 10% to 90%. Indoor use only.

Dimension

95 * 95 *110 mm

Weight

180g
