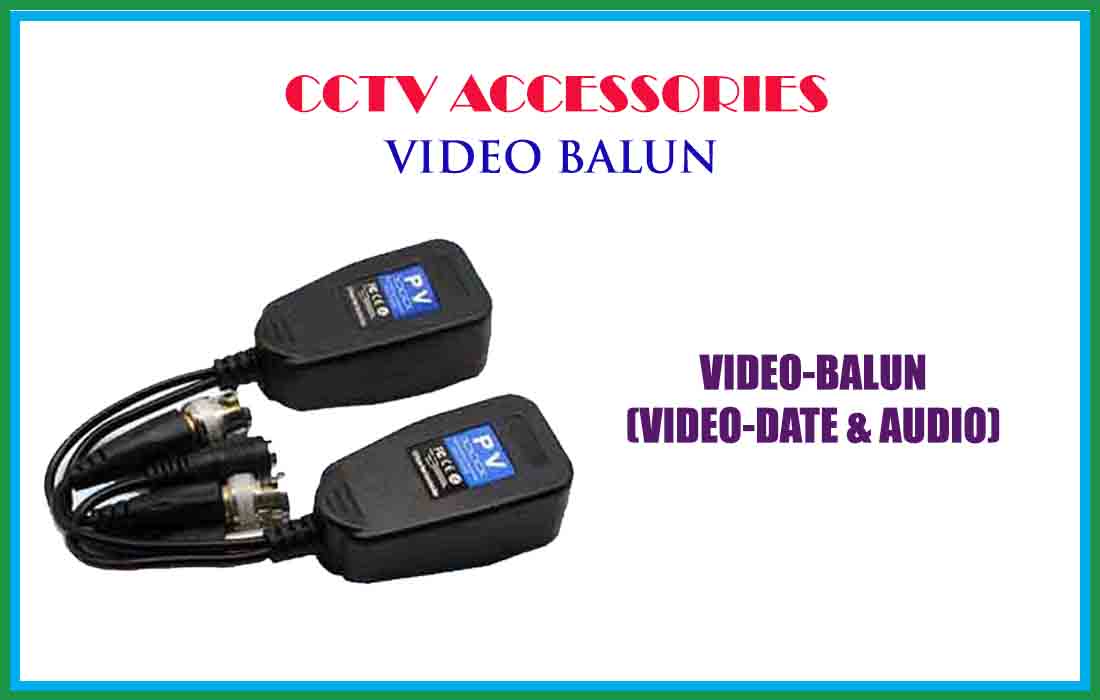

VIDEO BALUN ( VIDEO DATE & AUDIO )
You are here: Home \ Products \ VIDEO BALUN ( VIDEO DATE & AUDIO )

VIDEO BALUN ( VIDEO DATE & AUDIO )

Compatible with all HD-CVI, HD-TVI, HD-AHD
Up to 450m for 720P CVI Cameras
Up to 250m for 1080P CVI Cameras
Up to 250m for 720P/1080P TVI Cameras
Up to 320m for 720P AHD Cameras
NTSC, PAL and SECAM video formats
No power required
60dB cross talk and noise immunity
Compact size and easy installation
Built-in transient suppression protection
Innovative combinable design

Description

Specifications
Frequency response DC to 60 Mhz
Attenuation 0.5dB Type
CMRR 60dB
Surge Protection 4KV
ESD: 8KV
Connectors Male BNC and “ Press-Fit” terminal blocks
Impedance BNC – 75ohms
Terminal – 100ohms
Working Temperature -10°C to +70°C
Storage Temperature -30°C to +70°C
Humidity 0 to 95%
Dimension 45mm*25mm*21mm with 14cm cable
Material ABS Plastic
