Description

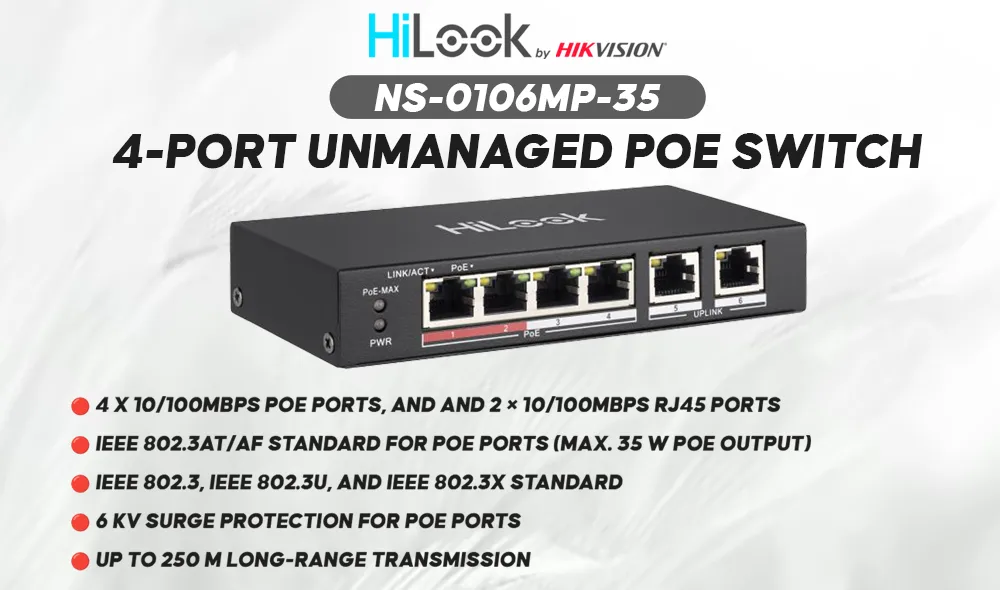

Datasheet: NS-0106MP-35
Quick Start Guide: NS-0106MP-35
General
- Shell: Metal material
- Net Weight: 0.54 kg (1.19 lb)
- Gross Weight: 0.58 kg (1.28 lb)
- Dimensions (W × H × D): 175.0 mm × 44.0 mm × 124.0 mm (6.89” × 1.73” × 4.88”)
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 220 VAC, 50 Hz, 0.8 A
- Max. Power Consumption: 35 W
- Power Consumption in Idle: 2.0 W
- Installation Mode: Desk-Mounted,Wall-Mounted
- Surge Protection: 2 KV
Network Parameters
- Ports: 4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
- MAC Address Table: 2 K
- Switching Capacity: 1.2 Gbps
- Packet Forwarding Rate: 0.89 Mpps
- Internal Cache: 0.77 Mbits
PoE Power Supply
- PoE Port: PoE: Ports 1 to 4
- Max. Port Power: 30 W
- PoE Power Budget: 35 W
Dialing Function
- Long Range
- Ports 1 to 4: up to 300 m.
- Long range performance may vary depend on camera model or cable condition.
Approval
- EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2018)
