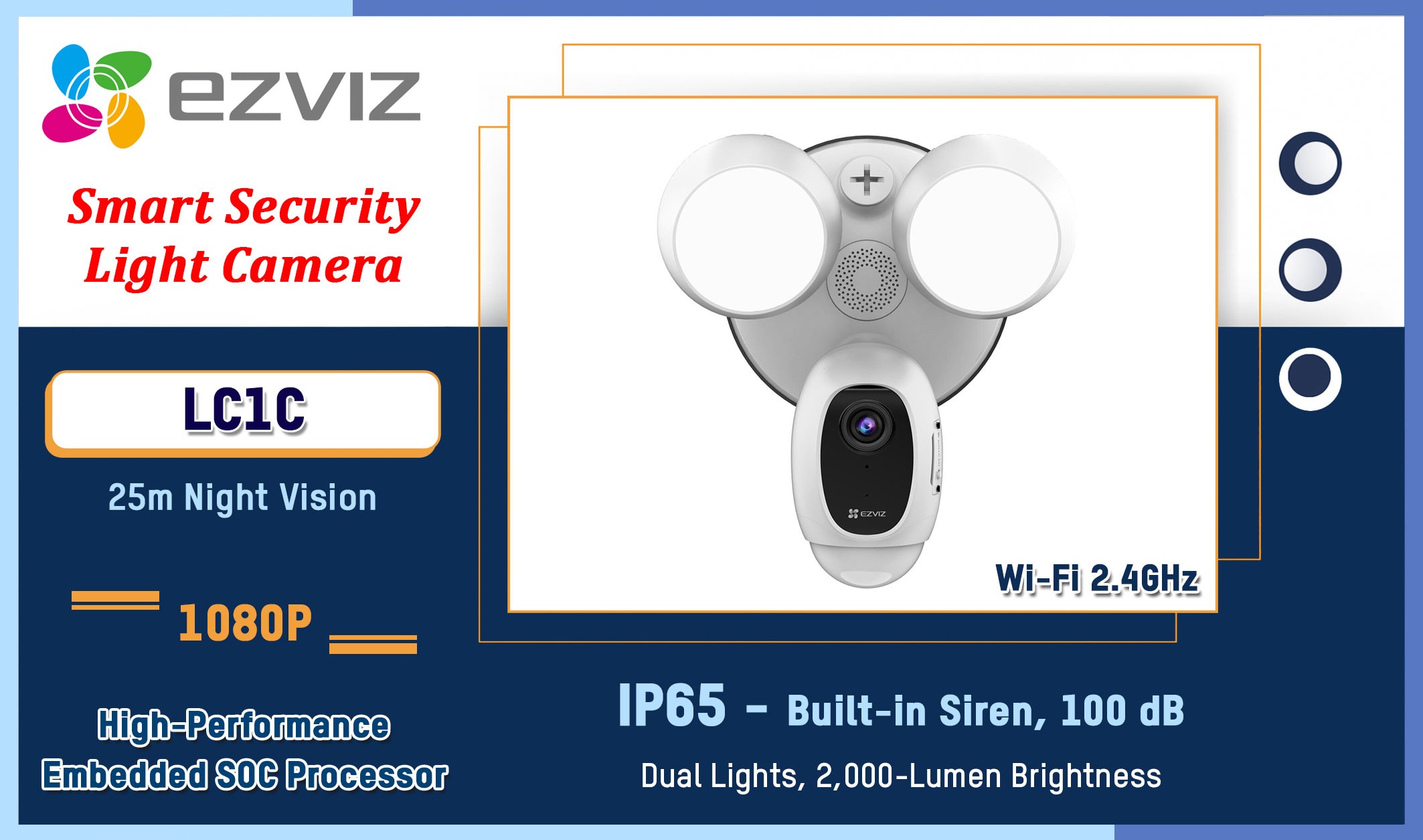

LC1C

EZVIZ-Logo COLOMBO CCTV

Key Features

  • Built-in Siren, 100 dB
  • Two-Way Talk
  • H.265 Video Compression
  • Starlight Standard Sensor
  • PIR Motion-Activated Floodlights

Description


Datasheet: LC1C

Model LC1C
System Parameters
Processor Embedded High-Performance SOC Processor
Operating System Embedded Linux
Light Parameters
Lamp 2
LED SMD LED
Brightness 2000LM (+/-10%)
CRI 80
Color Temperature 3000K
Life-Span @B50L70 @Ta 25°C 25000H
PIR Sensor Detection
Detection Distance 10 meters (33 feet)
Detection Range 270-degree
Camera Parameters
Resolution 1920 × 1080
Field of View Horizontal angle: 103°; Vertical angle: 57°; Diagonal angle: 121°
Night Vision Up to 25 m (82 ft.)
Video Parameters
Compression Standard Smart H.264, H.265
Max. Resolution 1920 × 1080, Full-HD
Frame Rate 25fps, Adaptive frame rate of network transmission
DNR 3D DNR
WDR Supports
BLC Supports
Audio Parameters
Audio Input Built-in Omni-direction microphone
Audio Output Built-in loudspeaker
Audio Quality Noise suppression
Network Parameters
Wireless 802.11 b/g/n @2.4GHz only (2T2R, dual-antenna)
Network Configuration Soft AP Configuration
Storage
Local Storage Supports Micro SD card (up to 256 GB)
Cloud Storage EZVIZ Cloud Storage (currently available only in some countries)
General
Working Temperature -30°C to 50°C (-20°F to 120°F)
Working Humidity 0 – 95%
Power Supply Hardwired (100v – 240v)
Power Consumption ≤35W
Ingress Protection Grade IP65 on camera
Product Dimensions (Height x Width x Depth) 268 x 186 x 185 mm (10.55 x 7.32 x 7.28 inch)
Package Dimensions 235 x 250 x 235 mm (9.25 x 9.84 x 9.25 inch)
Weight 1469 g (3.24 lbs)
