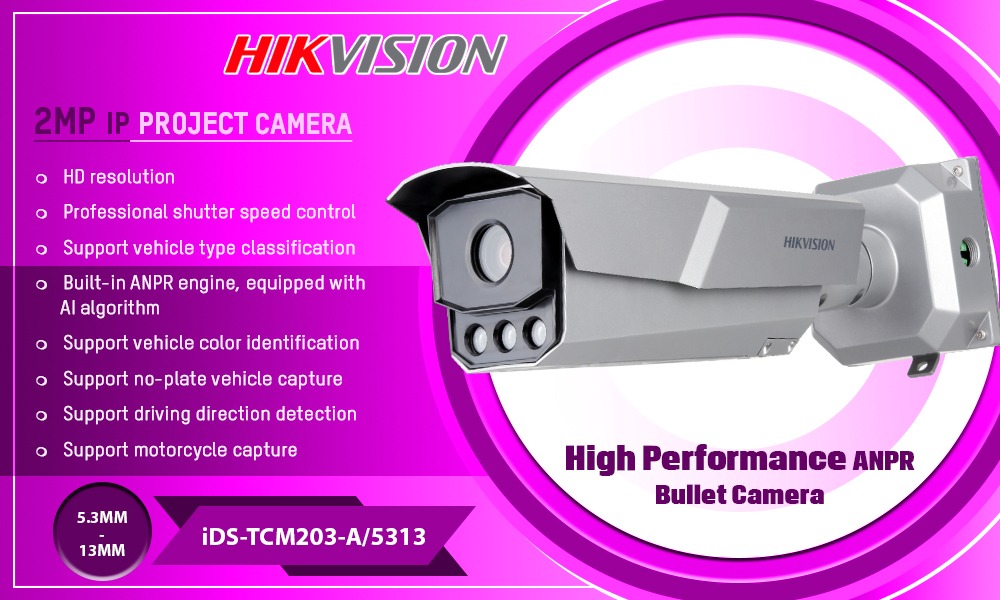

iDS-TCM203-A/5313

Description

Datasheet: iDS-TCM203-A/5313

User Manual: iDS-TCM203-A/5313

Camera

• Image Sensor: 1/1.8″ progressive scan CMOS
• Max. Resolution: 1920 × 1080
• Min. Illumination: Color: 0.001 Lux @ (F1.2, AGC ON)
• Shutter Time: 1/50 s to 1/100,000 s
• Slow Shutter: Supported

Lens

• Focal Length & FOV: 5.3-13 mm( Horizontal FOV: 39.7° to 15.9°, vertical FOV: 22.3° to 9.1°, diagonal FOV: 45.8° to 18.1°)
• Focus: Auto
• Iris Type: DC drive
• Aperture: F1.6-1.65

Illuminator

• Built-In Supplement Light Type: Built-in 3 LED strobe light

Supplement Detection (Radar)

• Speed Range: 5 to 120 km/h

Video

• Main Stream
  • 50 Hz: 50 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
  • 60 Hz: 60 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
• Sub Stream
  • 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
  • 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
• Video Compression
  • H.264 and H.265 encoding
  • Main stream: H.265/H.264/MJPEG
  • Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline profile/Main profile/High profile
• H.265 Type: Baseline profile/Main profile/High profile

Audio

• Audio Compression: G.711/G.722.1
• Bit Rate: 8 Kbps (G.711) /16 Kbps (G.722.1)

Network

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DNS, RTP, RTSP, RTCP, NTP, IPv6, UDP
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Version 2.1, PROFILE S, PROFILE G), ISAPI, SDK
• User/Host
  • Up to 32 users
  • 3 user levels: administrator, operator, and user
• Security: Password protection, HTTPS encryption, digest authentication for HTTP/HTTPS, digest authentication for ONVIF (Version 2.1)
• Network Storage: Micro SD/TF card (128 GB), local storage and CVR, NVR, ANR
• Client: iVMS-8600, Hik-Central
• Web Browser: IE7+


• Image Settings: Rotation mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable via client software or web browser.
• Day/Night Switch: Auto/Scheduled/Triggered by alarm in
• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Picture Overlay: Logo picture can be overlaid on video with 128 × 128 in 24-bit bmp format

Interface

• Video Output: Network
• Ethernet Interface: 1 RJ45 10M/100M/1000M Ethernet interface
• On-Board Storage: Built-in microSD/TF card, up to 128 GB
• Audio: Supported
• Alarm: 2 input interfaces, 2 output interfaces
• RS-485: 2 RS-485 interfaces
• RS-232: 1 RS-232 port
• Reset Key: Supported

Event

• Basic Event: HDD Error, network disconnected, IP address conflicted, vehicle detector exception, traffic light detector exception

Road Traffic And Vehicle Detection

• Smart Function
  • License plate recognition
  • Vehicle type classification, color identification, no-plate vehicle capture, vehicle driving
  • direction detection
• LPR Countries/Regions
  • Middle East:
    The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iran, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain
  • Africa:
    Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria
  • Asia-Pacific:
    Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Burma, India, Mongolia, Cambodia, Laos, Bangladesh
  • America:
    The United States of America, Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala
  • Europe:
    Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian State, Belgium, Luxembourg, Albania, Kosovo
  • Russian-Speaking Regions:
    Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia
  • Accuracy (Under Recommended Installation And Lighting Conditions)
    • Capture rate > 98%
    • Driving direction recognition accuracy > 98.5%
    • LPR accuracy > 98%
    • Mistaken capture rate < 2%
    • European and Russian-Speaking Regions:
      • LPR accuracy > 98%
      • Country/Region recognition accuracy > 95%
• No License Plate Detection: Supported
• Motorcycle LPR: Supported
• Vehicle Type: Car/Van/Bus/Truck/Others
• Vehicle Color: Red, yellow (including orange), green, blue, purple, brown, white, grey (including silver), black

General

• Firmware Version: V4.2.2
• Operating System: Linux
• Power: Max. 15 W
• Material: Aluminum alloy
• Dimension: With package: 428.5 × 120 × 132.8 mm
• Weight: Camera: approx. 3.12 ± 0.5 kg (6.88 ± 1.1 lb)
• Operating Condition
  • Temperature: -30 °C to +70 °C (-22 °F to +158 °F) ,
  • Humidity: 95% or less (non-condensing)
• General Function: One-key reset, three streams, heartbeat, password protection, watermark

Approval

• EMC: CE, FCC
• Environment: RoHS
• Protection: IP67, IK10
