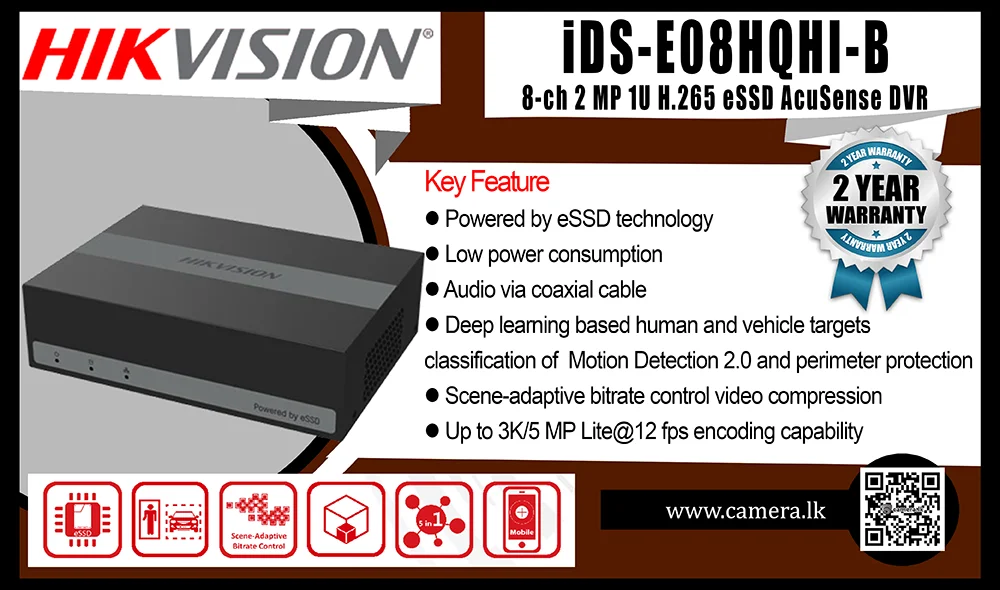

iDS-E08HQHI-B

Description

Datasheet: iDS-E08HQHI-B

User Manual: iDS-E08HQHI-B

Specification

Motion Detection 2.0

• Human/Vehicle Analysis
  • Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
  • Quick search by object or event type is supported;

Perimeter Protection

• Human/Vehicle Analysis: Up to 4-ch

Recording

• Video Compression: H.265 Pro/H.265
• Encoding Resolution
  • When 1080p Lite mode is not enabled:
    • 5MPLite/3K/4MPLite/1080p/1080pLite/720p/WD1/4CIF;
  • When 1080p Lite mode is enabled:
    • 5MP/3KLite/4MPLite/1080p Lite/720p/WD1/4CIF;
• Frame Rate
  • Main stream:
    • When 1080p lite mode not enabled:
      • For 5MP stream access: 3K/5MPLITE @12FPS；4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
      • For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
      • For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
    • When 1080p Lite mode enabled: 5MP/3K lite/ 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30fps (N)
• Video Bitrate: According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
• Stream Type: Video, Video & Audio

  Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.

• Audio Compression: G.711u
• Audio Bitrate: 64 Kbps

Video And Audio

• IP Video Input
  • 2-ch
  • Up to 6 MP resolution
  • Support H.265+/H.265 IP cameras
• Analog Video Input
  • 8-ch
  • BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI Input: 3K@20 fps, 5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps, 720p50, 720p60
• AHD Input: 5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• HDCVI Input: 5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• CVBS Input: Support
• HDMI Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output Mode: HDMI/VGA simultaneous output
• Audio Input: 8-ch via coaxial cable
• Audio Output: 1-ch via HDMI
• Synchronous Playback: 4-ch

Network

• Total Bandwidth
  • 96 Mbps
  • Incoming bandwidth: 8 Mbps
• Remote Connection: 64
• Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
• Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

• Capacity
  • Built-in 1024 GB eSSD (960 GB available)

    Note: The device can store about 2 weeks videos for 8-ch analog cameras (default parameters), this estimation is for reference only.

• Alarm In/Out: OPTIONAL 4/1
• USB Interface: Rear panel: 2 × USB 2.0

General

• Power Supply: 12 VDC, 1 A
• Consumption: ≤ 8.2 W (with eSSD)
• Working Temperature: -10 °C to 45 °C (14 °F to 113 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 170 × 121.6 × 46 mm (6.7 × 4.79 × 1.81 inch)
• Weight: ≤ 0.5 kg (with eSSD, 1.1 lb.)
