Description

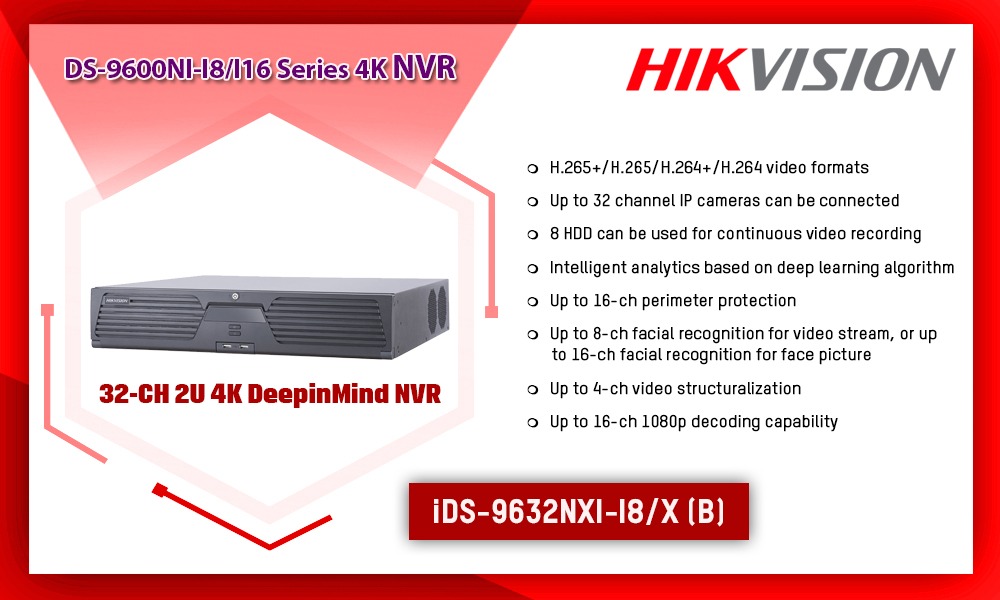

Datasheet: iDS-9632NXI-I8/X-(B)
User Manual: iDS-9632NXI-I8/X-(B)
Facial Recognition
- Facial Detection And Analytics: 8-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)
- Face Picture Library: 32 libraries；100, 000 pictures
- Face Picture Comparison: 16-ch face pictures comparison alarm, Alarm linkage actions: recording, audio warning, notify surveillance center, send email
Perimeter Protection
- Human/Vehicle Analysis: Up to 16-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
Video And Audio
- IP Video Input: 32-ch
- HDMI 1 Output
- VGA1: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Incoming Bandwidth: 320 Mbps/256 Mbps
- Incoming Bandwidth (RAID Mode): 200 Mbps/200 Mbps
- Audio Output: 2-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding
- Format: H.265/H.265+/H.264/H.264+/MPEG4
- Decoding Capability: 16-ch @ 1080p
- Synchronous Playback: 16-ch
- Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF
Network
- Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
RAID
- RAID Type: RAID0, RAID1, RAID5, RAID6, RAID10
Auxiliary Interface
- SATA: 8 SATA interfaces
- ESATA: 1 eSATA interface
- Capacity: Up to 10 TB capacity for each HDD
- Serial Interface: RS-232; RS-485; Keyboard
- USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out: 16/4 (16/8 is optional)
General
- Power Supply: ≤ 200 W
- Consumption: ≤ 70 W
- Working Temperature: -10 to +55° C (+14 to +131° F)
- Working Humidity: 10 to 90%
- Dimension (W × D × H): 445 × 465 × 88 mm (17.5″× 18.3″ × 3.5″)
- Weight: ≤ 10 kg (22 lb)
