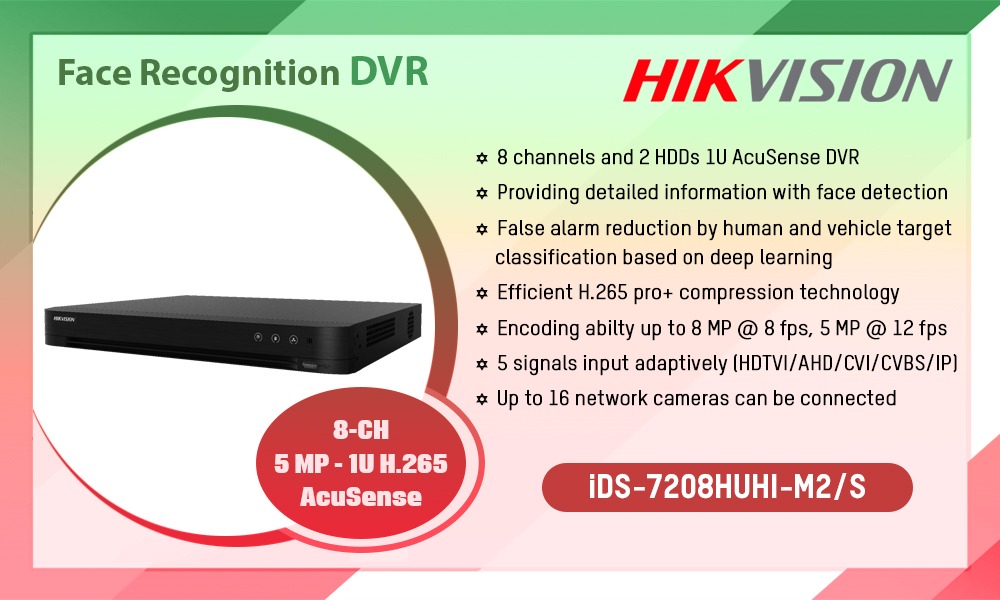

iDS-7208HUHI-M2/S

Description

Datasheet: iDS-7208HUHI-M2/S

User Manual: iDS-7208HUHI-M2/S

Recording

• Encoding Resolution
  • Main stream: 8 MP@8 fps/5 MP@12 fps/4 MP@15 f ps/3 MP@18 fps
    1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
    *: 8 MP@8 fps is only available for channel 1.
  • Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
• Video Bit Rate: 32 Kbps to 10 Mbps
• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Dual Stream: Support
• Stream Type: Video, Video & Audio
• Audio Compression: G.711u
• Audio Bit Rate: 64 Kbps

Video And Audio

• • Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Synchronous Playback: 8-ch
  • IP Video Input: 8-ch (up to 16-ch);Up to 6 MP resolution; Support H.265+/H.265/H.264+/H.264 IP cameras
  • HDTVI Input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
  • HDCVI Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps

• CVBS Input: PAL/NTSC
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Analog Video Input: 8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• AHD Input: 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• HDMI/VGA Output
  • HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output

Network

• Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connections: 64
• Network Interface: 1,RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface

• Capacity: Up to 10 TB capacity for each disk
• Serial Interface: RS-485 (half-duplex)
• USB Interface
  • 1 × USB 2.0
  • 1 × USB 3.0
• Alarm In/Out: N/A
• SATA: 2 SATA interface

General

• Consumption(Without HDD): ≤ 15 W
• Working Humidity: 10% to 90%
• Power Supply: 12 VDC
• Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
• Dimensions(W × D × H): 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
• Weights (Without HDD): ≤ 2 kg (4.4 lb)
