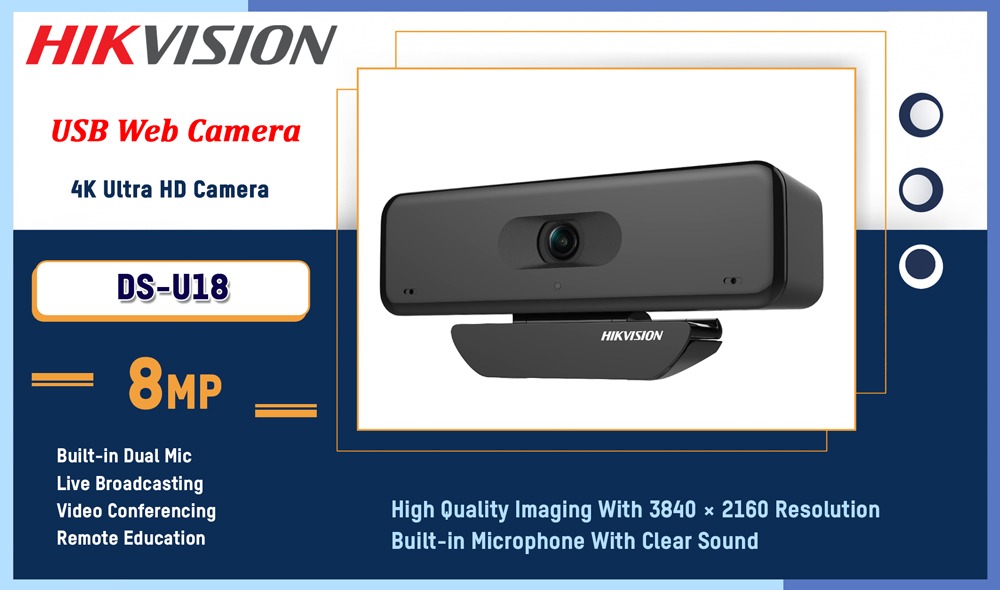

DS-U18

Description

Datasheet: DS-U18

User Manual: DS-U18

Camera

• Image Sensor: 8 MP CMOS
• Signal System: PAL/NTSC
• Frame Rate
  • USB 3.0:
    • MJPEG:
      • 3840 × 2160 @ 30 fps/25 fps
      • 1920 × 1080 @ 30 fps/25 fps
      • 1280 × 720 @ 30 fps/25 fps
      • 640 × 480 @ 30 fps(default)/25 fps
    • YUV:
      • 1920 × 1080 @ 30 fps/25 fps
      • 1280 × 720 @ 30 fps/25 fps
      • 640 × 480 @ 30 fps/25 fps
  • USB 2.0:
    • MJPEG:
      • 1920 × 1080 @ 30 fps/25 fps
      • 1280 × 720 @ 30 fps/25 fps
      • 640 × 480 @ 30 fps(default)/25 fps
    • YUV:
      • 1920 × 1080 @ 5 fps
      • 1280 × 720 @ 10 fps/5 fps
      • 640 × 480 @ 30 fps/25 fps
• Resolution: 3840 (H) × 2160 (V)
• Min. Illumination: 0.1 Lux @ (F1.2, AGC ON)
• Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens: 3.6 mm fixed focal lens
• Field Of View: horizontal FOV: 79°, vertical FOV: 43°, diagonal FOV: 92°
• Lens Mount: M16
• Day & Night: Color
• Angle Adjustment: pan: 0°; tilt: -10° to 30°; ratation: 0°
• Cable Length: 2 m
• Depth Of Field: 2 m to ∞

Interface

• Video Output: USB 3.0
• Audio In: Built-in mic
• Operating System: Windows 7/10, Android, Linux

General

• Operating Conditions: -10°C to 45°C, Humidity: 90% or less (non-condensing)
• Power Supply: DC 5V ± 5% (USB)
• Consumption: Max. 2.2 W
• Material: Plastic
• Dimension: 130 mm × 53.2 mm × 56.6 mm (5.12″ × 2.09″ × 2.23″)
• Weight: Approx. 137 g (0.30 lb)

Accessory

• Packing List
  • Camera × 1
  • USB cable × 1
  • Quick Start Guide × 1
