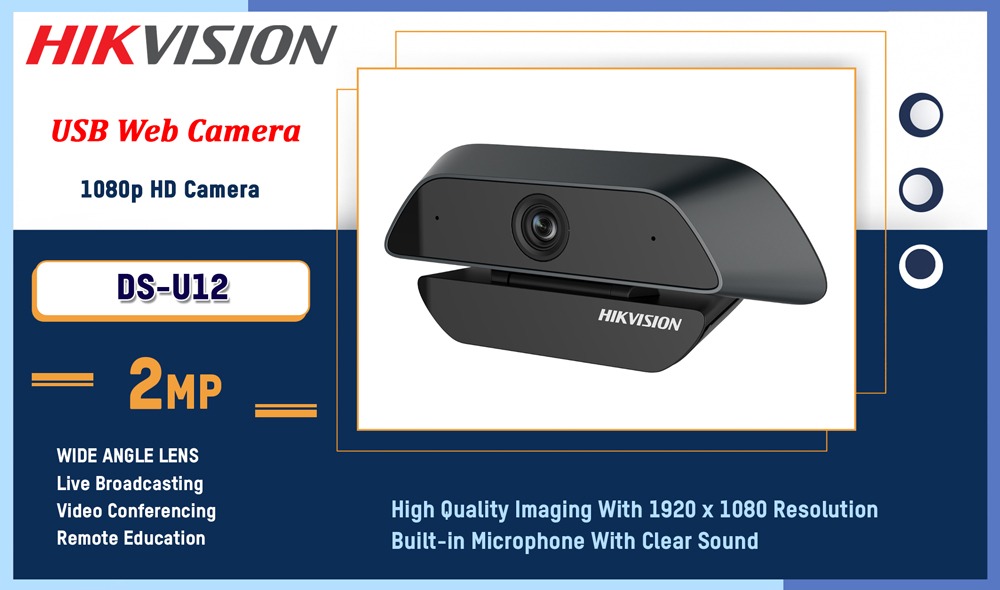

DS-U12

Description

Datasheet: DS-U12

User Manual: DS-U12

Camera

• Image Sensor: 2 MP CMOS
• Signal System: PAL/NTSC
• Frame Rate
  • MJPG：
    • 1920 × 1080 @ 30 fps/25 fps
    • 1280 × 960 @ 30 fps/25 fps
    • 1280 × 720 @ 30 fps/25 fps
    • 640 × 480 @ 30 fps(default)/25 fps
  • YUV2：
    • 1280 × 960 @ 7 fps
    • 1280 × 720 @ 10 fps
    • 640 × 480 @ 25 fps
• Resolution: 1920 (H) × 1080 (V)
• Min. Illumination: 0.1 Lux @ (F1.2, AGC ON)
• Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens: 3.6 mm fixed focal lens
• Field Of View: horizontal FOV: 81°, vertical FOV: 50°, diagonal FOV: 90°
• Lens Mount: M8
• Day & Night: 24/7 Color Imaging
• Angle Adjustment: pan: 0°; tilt: -10° to 30°; ratation: 0°
• Digital Zoom: Yes
• Cable Length: 2 m
• Depth Of Field: 0.4 m to ∞

Interface

• Video Output: USB 2.0
• Audio In: Built-in mic
• Operating System: Windows XP/7/10, Android, Linux

General

• Operating Conditions: -10°C to 40°C, Humidity: 90% or less (non-condensing)
• Power Supply: DC 5V ± 5% (USB)
• Consumption: Max. 1.0 W
• Dimension: 118 mm × 46.8 mm × 54.9 mm (4.65″ × 1.84″ × 2.16″)
• Weight: Approx. 140 g (0.31 lb)

Accessory

• Packing List
  • Camera × 1
  • Quick Start Guide × 1
