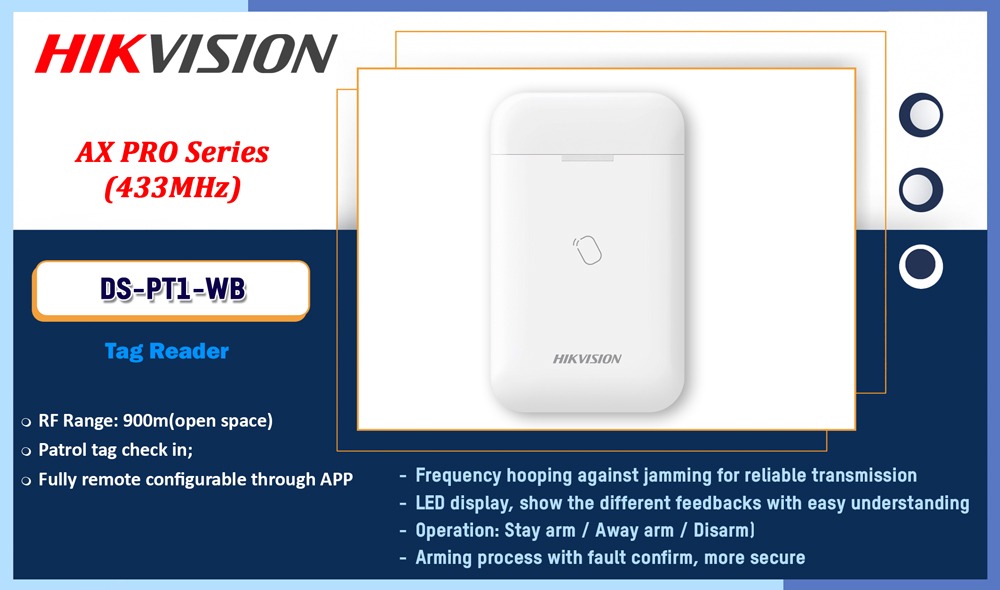

Description
Datasheet: DS-PT1-WB
User Manual: DS-PT1-WB
Quick Start Guide: DS-PT1-WB
Specification
Hardware features
- Power switch: Power on/off
Electrical characteristics
- Battery type: Three AA batteries
- Operation humidity: 10% to 90% (no condensing)
- Operation temperature: -10°C to +55°C (-4°F to +122°F)
- Power consumption
- Quiescent current: 110 uA
- Max current: 292mA
- Voltage: 1.5 VDC
- Battery life span: Up to 2 years (standby time)
Wireless transmission
- RF frequency: 433 MHz
- RF modulation: 2GFSK
- RF distance: 900m(open area)
Display
- Indicator: 5, area(blue), fault(orange), arm(blue), disarm(green), alarm(red), signal(red/green)
General
- Installation method: Wall mounting
- Dimension(WxHxD): 75*124*21 mm
- Color: white
- Weight: 176g (with battery)
