Description

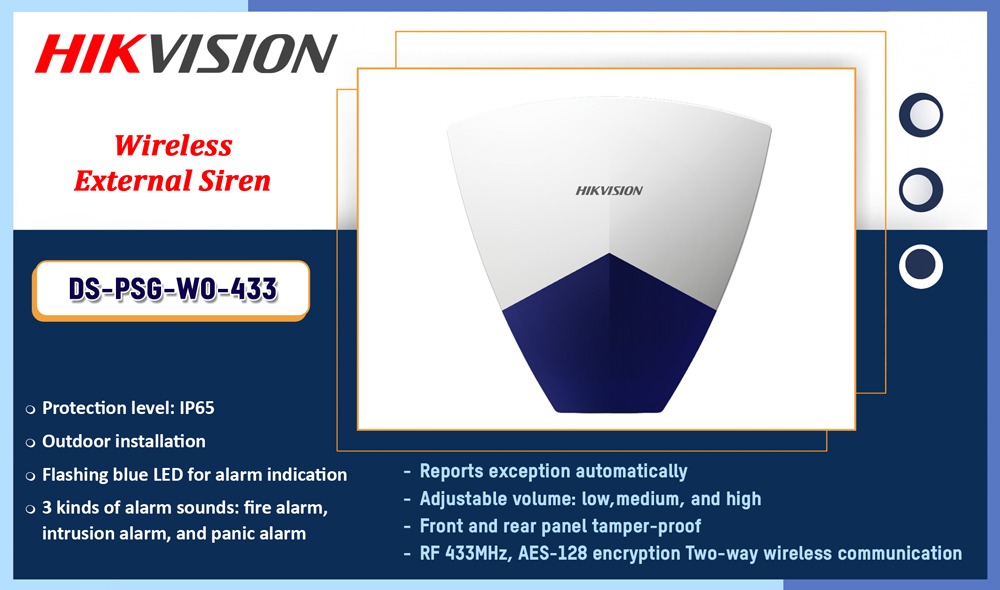

Datasheet: DS-PSG-WO-433
Quick Start Guide: DS-PSG-WO-433
Software Features
- Tamper-Proof: Front and rear
Hardware Features
- Indicator: Blue (on front panel), Green/Red (on PCB)
RF Transmission
- RF Frequency: 433MHz
- Modulation: 2GFSK
- RF Power: 10 dBm
- RF Speed: 10 kbps
- Range: 800 m (open area)
Electrical Characteristics
- Power Supply: 4 CR123A Batteries (default) or 12 VDC
- Battery Life Span: 5 years in stand-by status
- Power Consumption: Static consumption: ＜ 20 uA
General
- Operation Temperature: -25 °C to +60 °C (-13 °F to +140 °F)
- Operation Humidity: 10% to 90% (no condensing)
- Shell Material: PC+ABS
- Dimension(WxHxD): 220.5 × 205.2 × 46 mm (8.68″ × 8.08″ × 1.81″）
- IP Rate: IP65
- Color: White and blue
- Installation Method: Wall mounting
