Description

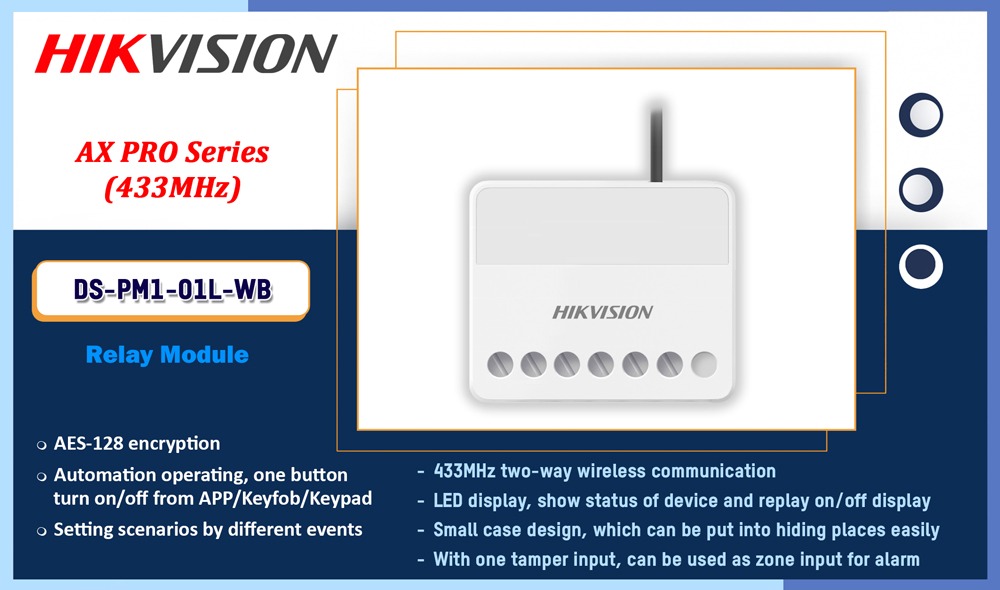

Datasheet: DS-PM1-O1L-WB
User Manual: DS-PM1-O1L-WB
Specification
Software features
- Scenario setting: By alarm, by operation, by fault, by schedule, by manual
- Learning button: 1, for register
Hardware features
- Serial port: 1, for debug
Electrical characteristics
- Power supply: DC 7V to 24V
- Operation humidity: 10% to 90%
- Operation temperature: -10°C to 55°C
Wireless transmission
- RF frequency: 433 MHz
- RF method: Two-way communication
- RF modulation: 2GFSK
- RF distance: 800 m
- Wireless security: AES-128
Display
- LEDs status: 3, register/signal (green/red), power (green), relay status (blue)
General
- Installation method: Wall-Mounting
- Dimension(WxHxD): 38 mm × 25 mm × 18 mm
- Shell material: Plastic
- Color: White
- Weight: 28.5 g
Device management
- Alarm input: 1 for tamper, NO/NC
- Relay output: 1, NO/NC (0 to 36V DC, Max 5A)
