Description

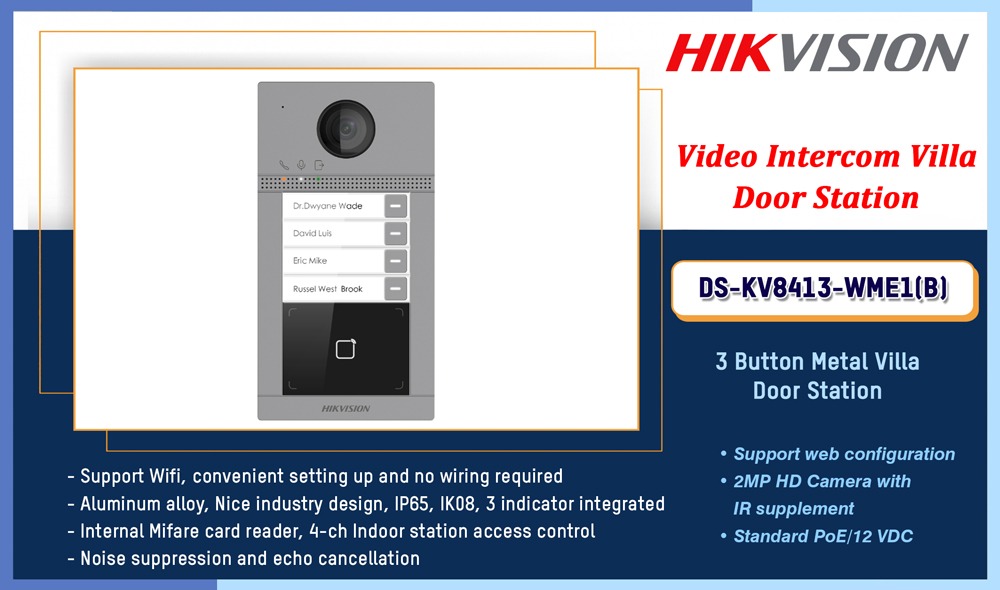

Datasheet: DS-KV8413-WME1(B)
Quick Start Guide: DS-KV8413-WME1(B)
Display Parameters
- Size: /
- Operation Method: /
- Type: /
Video Parameters
- Supplement Light: IR supplement
- Lens: 1
- FOV: Horizontal: 129° Vertical: 75°
- Pixel
- Main stream : 1920 × 1080
- Sub stream : 720 × 480
Audio Parameters
- Audio Quality: Noise suppression and echo cancellation
Network Parameters
- Communication Protocol: TCP/IP, RSTP
- Wired Network: 10/100 Mbps self-adaptive Ethernet
- Wi-Fi: /
- Bluetooth: /
Device Interfaces
- Network Interface: 1
- Exit Button: 2
- Lock Control: 2
- Door Contact Input: 2
- Power Interface: 1
General
- Button: 4
- Installation: Surface mounting
- Indicator: 3
- Weight: 385g
- Protective Level: IP65, IK08
- Power Supply Method: 12 VDC, IEEE802.3af, standard PoE
- Working Temperature: -40° C to +55° C(-40° F to 131° F)
- Working Humidity: 10% to 95%
- Dimensions: 174 mm × 91 mm × 29 mm
- Battery: /
- Application Environment: Outdoor
- Power Consumption: ＜ 10 W
