Description

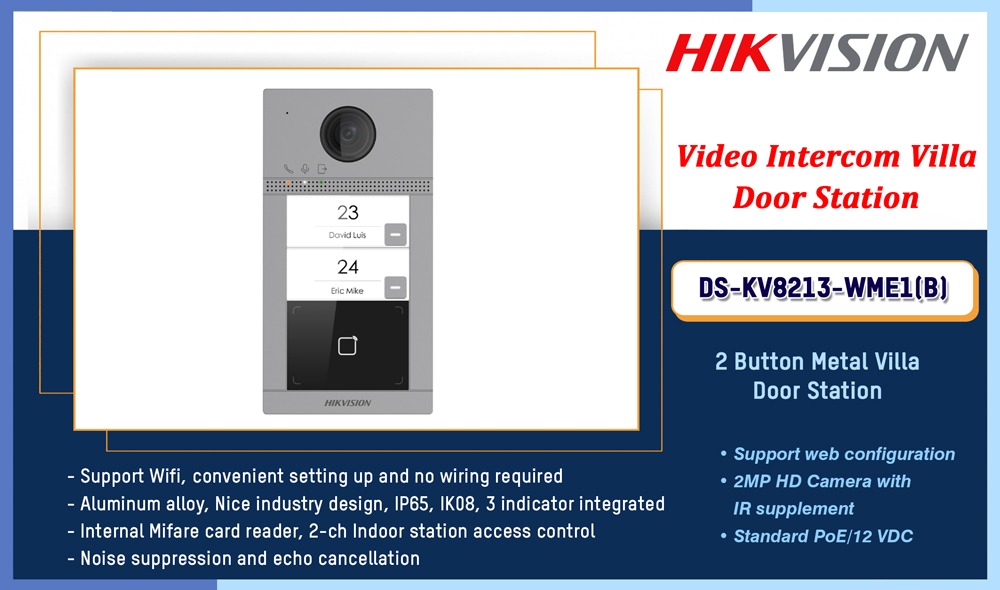

Datasheet: DS-KV8213-WME1(B)
Quick Start Guide: DS-KV8213-WME1(B)
System Parameters
- Operating System: Embedded Linux operation system
- ROM: 32 M
- RAM: 256 M
- CPU: Embedded MCU Processor
Display Parameters
- Screen Size: /
- Operation Method: /
- Type: /
- Resolution: /
Video Parameters
- Video Standard: H.264
- Supplement Light: Low illumination IR supplement mode:3 m
- Lens: 1
- FOV: Horizontal: 129° Vertical: 75°
- WDR: Support
- Resolution
- Main stream : 1920 × 1080
- Sub stream : 720 × 480
Audio Parameters
- Audio Compression Standard: G.711 U
- Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker (More than 85 dB within 20 cm)
- Compression Bitrate: 64 Kbps
- Audio Quality: Noise suppression and echo cancellation
- Volume Adjustment: Adjustable
Capacity
- Fingerprint Capacity: /
- User Capacity: 2000
- Face Capacity: /
- Linked Indoor Station Capacity: 2
- Event Capacity: /
Network Parameters
- Communication Protocol: TCP/IP, RSTP
- Wired Network: 10/100 Mbps self-adaptive Ethernet
- Wi-Fi: /
- Bluetooth: /
- 3G/4G: /
Device Interfaces
- Alarm Input: 4
- Network Interface: 1
- TAMPER: 1
- Exit Button: 2
- RS-485: 1
- USB: /
- Wiegand: /
- TF Card: 0
- Alarm Output: /
- Lock Control: 2
- Door Contact Input: 2
- Power Interface: 1
- General
- Button: 2
- Installation: Surface mounting/ Flush mounting
- Indicator: 3
- Weight: 385 g
- Protective Level: IP65, IK08
- Power Supply Method: 12 VDC, IEEE802.3af, standard PoE
- Working Temperature: -40° C to +55° C(-40° F to 131° F)
- Working Humidity: 10% to 95%
- Dimensions: 174 mm × 91 mm × 29 mm
- Battery: /
- Application Environment: Outdoor
- Power Consumption: ＜ 10 W
