Description

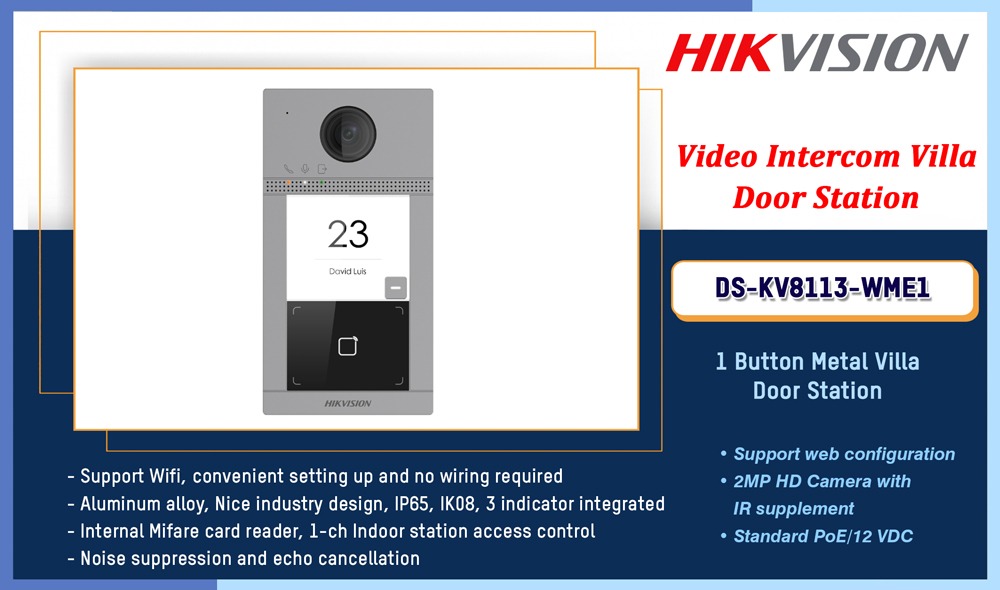

Model | DS-KV8113-WME1 |
---|---|
Flash | 32 GB |
RAM | 256 GB |
Operation Method | Single Button |
Operating System | Embedded Linux |
Image Sensor | 2 MP HD Camera (CMOS Sensor) |
Night Vision | Low Illumination IR Supplement Mode: 9.84′ / 3 m |
Image Enhancement | BLC, DNR, WDR (120 dB) |
Field of View | Horizontal: 129° Vertical: 75° |
Video Compression | H.264 |
Streaming | Main Stream: 1920 x 1080 at 30 fps, 1280 x 720 at 25 fps Sub-Stream: D1 at 25 fps |
Resolution | Main Stream: 1080p, 720p Sub-Stream: 704 x 576 |
Motion Detection | Supported |
Anti-Flicker | 50/60 Hz |
Intercom | Two-Way Audio Support |
Audio Input | Omnidirectional Microphone |
Audio Output | Loudspeaker |
Compression | G.711u |
Compression Rate | 64 kb/s |
Audio Quality | Noise Suppression and Echo Cancellation |
Ethernet | 100M Ethernet |
Network Protocols | TCP/IP, RTSP |
Reading Frequency | 13.56 MHz |
Card Type | MIFARE |
Relay | 2 |
RS-485 | 1 |
Wi-Fi | 2.4 GHz |
Debugging Port | 1 |
Storage | TF Card up to 128 GB |
Alarm Inputs | 4 |
Grounding | 1 |
Tamper Switch | 1 |
Physical Buttons | 1 |
Power Supply | 12 VDC, PoE IEEE 802.3af |
Power Consumption | |
Operating Temperature | -40 to 127.4°F / -40 to 53°C |
Operating Humidity | 10 to 95% Non-Condensing |
LED Indicators | 3 |
IP Rating | IP65 |
IK Rating | IK08 |
Certifications | FCC, CE, cUL |
Installation | Surface Mount (Included) |
Dimensions (L x W x H) | 6.85 x 3.58 x 1.14″ / 174 x 91 x 29 mm |
Package Weight | 1.905 lb |
Box Dimensions (LxWxH) | 8.8 x 5.6 x 4.7″ |
