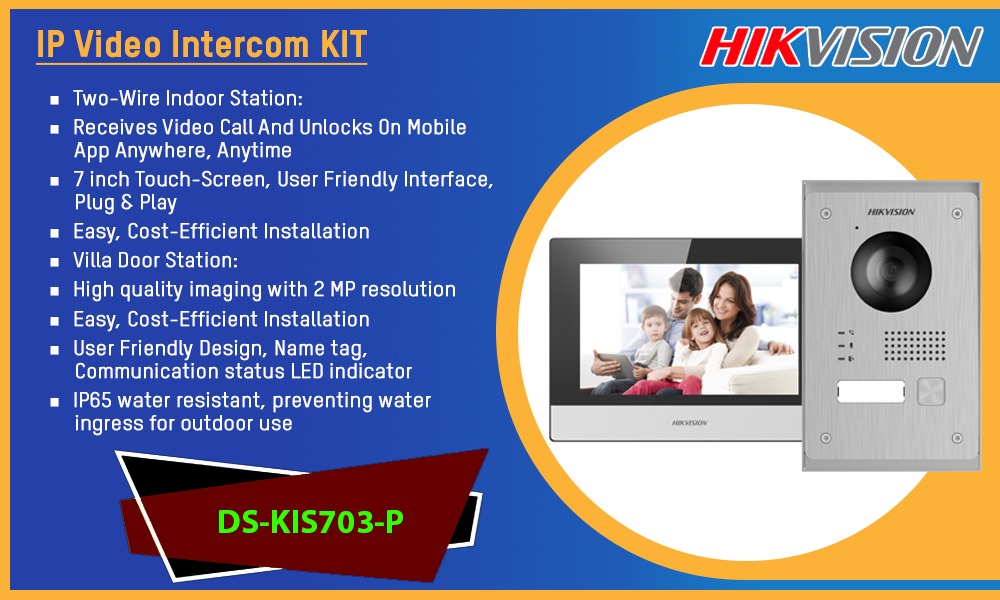

Description
Datasheet: DS-KIS703-P
User Manual: DS-KIS703-P
Door Station/System Parameters
- Operation System: Embedded Linux operation system
- Operation Mode: Single-button
- Flash: 32 MB
- RAM: 256 M
Door Station/Video Parameters
- Camera: 2MP HD camera
- Resolution
- Main stream: 1920 × 1080p, 720p
- Sub stream: 704 × 576
- Night Vision: Low illumination IR supplement mode:3 m
- WDR: True WDR
- Field Of View: Horizontal: 144° Vertical: 95°
- Video Compression Standard: H.264
- Stream
- Main stream: 1080p@30fps, 720p@30fps
- Sub stream: 4CIF
- Motion Detection: Support
- BLC: Support
- DNR: Support
- Anti-Flicker Frequency: 50 Hz, 60 Hz
Door Station/Audio Parameters
- Audio Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker
- Quality: Noise suppression and echo cancellation
- Audio Compression Standard: G.711 U, G.711 A
- Audio Compression Rate: 64 Kbps
- Intercom: Two-way audio communication
Door Station/Network Parameters
- Network Protocol: TCP/IP, RSTP
- Wired Network: 10/100 Mbps Ethernet
Door Station/Device Interfaces
- RS-485: 0
- Alarm Input: 5
- Output: 12 V/1 A output
- Debugging Port: 1
- Two-Wire Interface: 1
- Grounding: 1
- TAMPER Switch: 1
Door Station/General
- Power Consumption: ＜ 10 W
- Working Temperature: -40° C to +60° C(-40° F to 140° F)
- Working Humidity: 10% to 95%
- Installation: Surface mounting, flush mounting
- Protection Level: IP65
- Indicator: 3
- Heater: Support
- Power Supply: From indoor station
Indoor Station/System Parameters
- Operation System: Embedded Linux operation system
- Memory: 128 MB
- Flash: 32 MB
Indoor Station/Display Parameters
- Display Screen: 7-inch TFT touch screen
- Display Resolution: 1024 × 600
- Operation Method: Capacitive touch screen
- Brightness: Adjustable
Indoor Station/Audio Parameters
- Audio Input: Built-in microphone
- Audio Output: Built-in loudspeaker
- Quality: Noise suppression and echo cancellation
- Volume: Local adjustable
- Audio Compression Standard: G.711 U, G.711 A
Indoor Station/Network Parameters
- Wired Network: Wi-Fi 802.11 b/g/n
- Wireless Network: 10/100 Mbps self-adaptive
Indoor Station/Device Interfaces
- RS-485: 1
- Alarm Input: 8
- Two-Wire (Output): 1
- Two-Wire (Input): 1
- Power Input: 24VDC
- Debugging Port: 1
Indoor Station/General
- Power Supply: 24VDC
- Power Consumption: ≤ 8 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
