Description

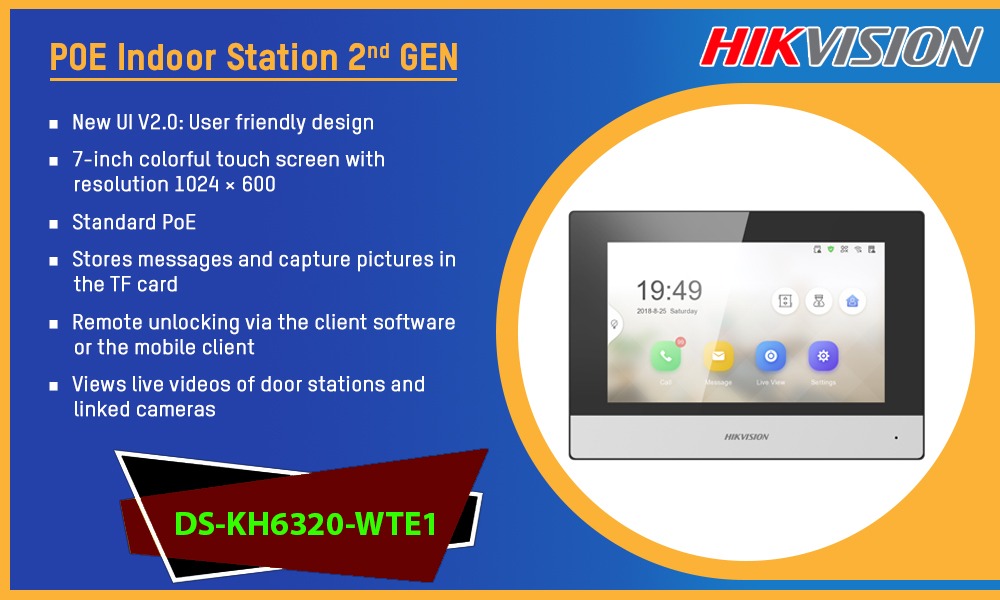

Datasheet: DS-KH6320-WTE1
User Manual: DS-KH6320-WTE1
System Parameters
- Operating System: Embedded Linux operation system
- ROM: 32 MB
- RAM: 128 MB
- CPU: Embedded processor
Display Parameters
- Screen Size: 7-inch colorful TFT screen
- Operation Method: Capacitive touch screen
- Type: Colorful TFT screen
- Resolution: 1024 × 600
Video Parameters
- Lens: /
- Resolution: /
- FOV: /
- WDR: /
- Video Compression Standard: DS-KH6320-WTE1
- Focal Length: /
Audio Parameters
- Audio Compression Standard: G.711 U
- Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker
- Audio Compression Bitrate: 64 Kbps
- Quality: Noise suppression and echo cancellation
- Volume Adjustment: Adjustable
Capacity
- Notice Capacity: 200
- Linked Network Camera Capacity: 16
- Indoor Extensions Capacity: 5
- Linked Doorphone Capacity: 8
Network Parameters
- Communication Protocol: TCP/IP, SIP, RTSP
- Wired Network: 10/100 Mbps self-adaptive
- Wi-Fi Standard: Wi-Fi 802.11 b/g/n
- Bluetooth Version: /
- 3G/4G Standard: /
- Zigbee: /
Device Interfaces
- Alarm Input: 8-ch alarm inputs
- Network Interface: 1 RJ-45 10/100 Mbps self-adaptive
- TAMPER: /
- RS-485: 1
- USB: /
- TF Card: Max to 32 G, SD 2.0 or lower version
- Alarm Output: 2
- Power Interface: 1
General
- Button: 0
- Installation: Surface mounting
- Indicator: 0
- Weight
- With package: 683 g
- Without package: 355 g
- Protective Level: /
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Dimensions: 200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″)
- Battery: /
- Application Environment: Indoor
- Power Consumption: ≤ 6 W
- Language: English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek
Face Recognition Terminal/General
- Power Supply Method: IEEE802.3af, standard PoE
12 VDC/1 A
