Description

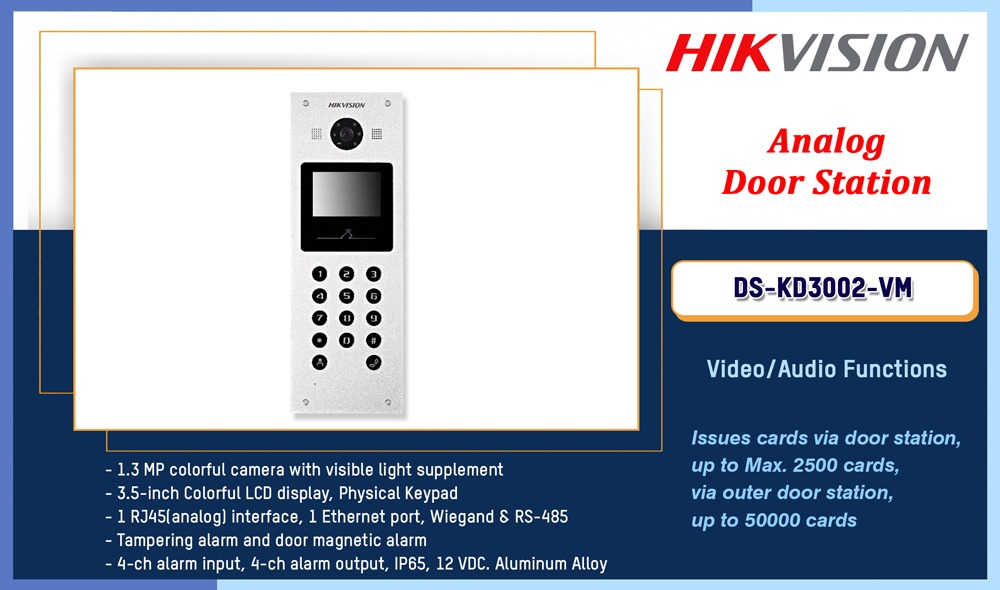

Datasheet: DS-KD3002-VM
Quick Start Guide: DS-KD3002-VM
Display Parameters
- Display Resolution: 480 × 320
- Screen: 3.5-Inch Colorful TFT LCD
- Operation Interface: LCD Display, Easy Menu
Video Parameters
- Camera: CMOS Low Illumination 1.3 MP HD Colorful Camera
- Resolution: 1280 × 720
- Video Frame Rate: PAL: 25 fps, NTSC: 30 fps
- Video Compression Standard: H.264
Audio Parameters
- Audio Compression Rate: 64 Kbps
- Compression Standard: G.711 U
- Audio Input: Built-in Omnidirectional Microphone
- Output: Built-in Loudspeaker
- Audio Quality: Noise Suppression and Echo Cancellation
Device Interfaces
- RS-485: 1 RS-485 Half-Duplex Port
- Wiegand: 1 Wiegand Port for Accessing Wiegand IC Card Reader
- USB: 1 USB 2.0, Supporting U-Disk
- I/O Output: 4
- Network Interface: 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
- I/O Input: 4
General
- Power Supply: 12 VDC
- Power Consumption: ≤15 W
- Working Temperature: -40° C to +60° C (-40° F to 140° F)
- Working Humidity: 10% to 90%
- Certification: FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
- Dimensions(L × W × H): 357 mm × 124 mm × 55 mm (14.1″ × 4.9″ × 2.2″)
- IP Protection Level: IP65
- Material: Aluminum Alloy
