Description

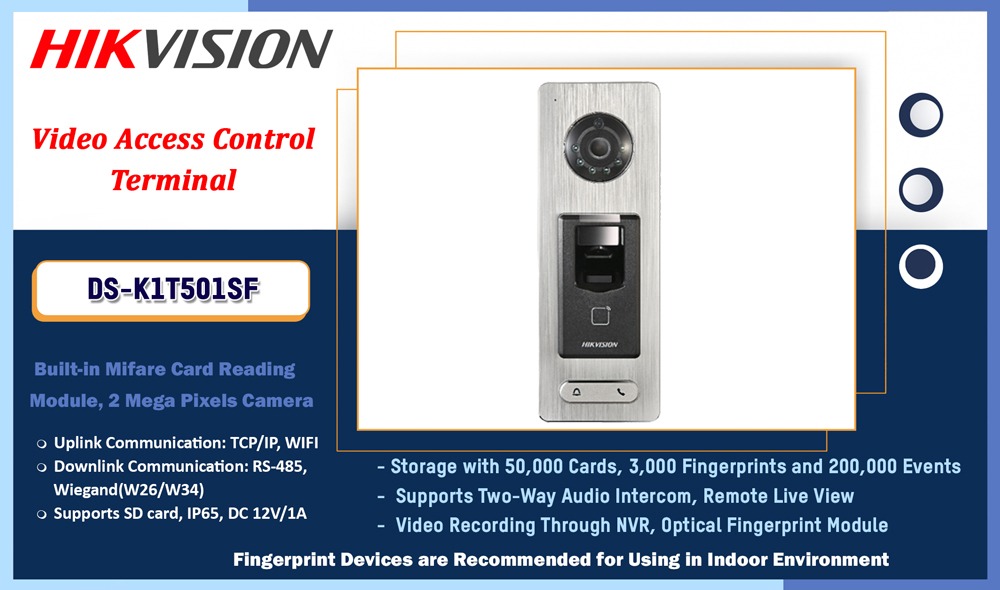

Datasheet: DS-K1T501SF
User Manual: DS-K1T501SF
General
- Working Temperature: -40°C to 70°C (-40°F to 158°F)
- Humidity: 10% to 90% (No Condensing)
- Working Current: Max. 600 mA
- Power Supply: 12 VDC/1 A
- Audio
- Input: Build-in Micro Phone (Sensitivity: -25±3DB)
- Audio Output: Build-in Loudspeaker (1W)
- Processor: 32 Bit High-performance Processor
- Communication Mode: Terminal Mode: TCP/IP and RS-485Card Reader Mode: Wiegand (26/34) and RS-485
- Camera: 2MP/1080P, IR Light
- Card Capability: 50000
- FAR (False Acceptance Rate): ≤ 0.001 %
- FRR (False Recognition Rate): ≤ 0.01 %
- Fingerprint Module: Optical Fingerprint Recognition Module
- Card Reading Mode: Mifare Card
- Input Interface: Doorbell Button × 1, Door Magnetic Sensor × 1, Alarm Input × 2, Tamper Alarm × 1, Exit Button × 1
- Output Interface: Lock Relay × 1, Alarm Output (Doorbell) × 1
- Record Capability: 200000
- Fingerprint Capability: 5000
- 1:N Fingerprint Recognition Speed: ≤ 1.5s
- Induction Distance: ≥ 2cm
- Video Storage: Record and Save Video through NVR or Micro SD Card
- Micro SD Card: Max. 128G
- Mounting: Wall Mounting
- Protection Level: IP65
- Dimension: 218mm × 78mm × 41mm (8.58″ × 3.07″ × 1.61″)
