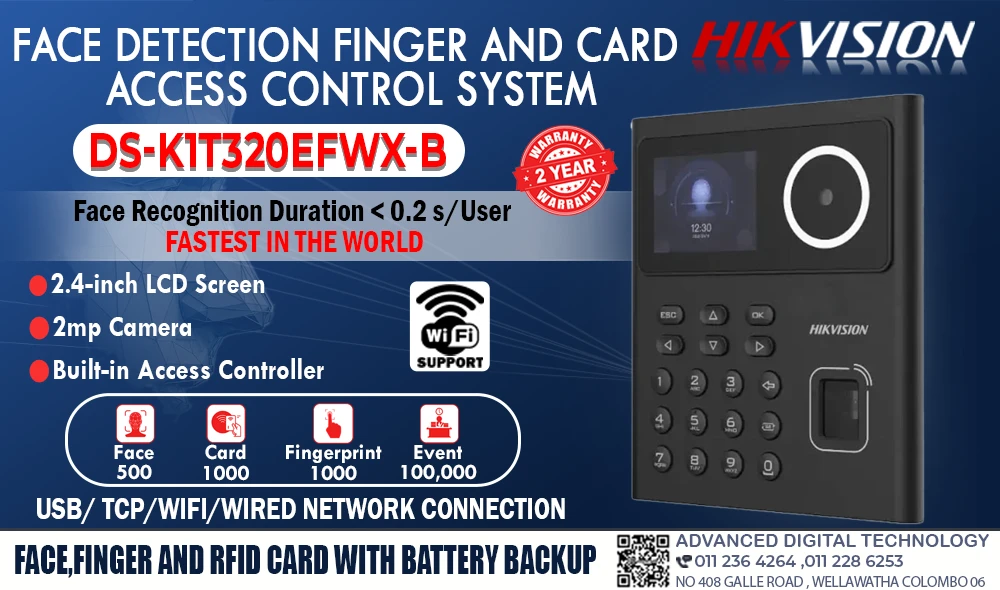

DS-K1T320EFWX-B
You are here: Home \ Products \ DS-K1T320EFWX-B

DS-K1T320EFWX-B

logo-2

Key Features

  • 2.4-inch LCD screen, 2 MP lens
  • Multiple authentication methods, including face, fingerprint, card, and PIN, etc
  • Supports EM card
  • Max. 500 faces, 1,000 cards, 1,000 fingerprints and 100,000 events
  • Face recognition duration < 0.2 s/User
  • Supports ISAPI and ISUP 5.0 protocols
  • Configuration via the web client
  • Supports power supply by battery in the bracket
  • Supports access control and local time and attendance function

Description


Datasheet: DS-K1T320EFWX-B

System

  • Operating system: Linux

Display

  • Screen size: 2.4 inch
  • Type: LCD
  • Resolution: 320 × 240

Video

  • Lens: 1
  • Video compression standard: PAL (Default) and NTSC
  • Resolution: 2 MP (video stream: 720P)

Audio

  • Audio output: Built-in buzzer

Network

  • Wired network: Support
  • Wi-Fi: Support, 2.4 G, 802.11b/g/n

Interface

  • Network interface: 1 RJ-45, 10/100 M self-adaptive
  • Lock control: 1
  • Exit button: 1
  • Door contact input: 1
  • TAMPER: 1
  • USB: 1

Capacity

  • Face capacity: 500
  • Fingerprint capacity: 1,000
  • Card capacity: 1,000
  • Event capacity: 100,000

Authentication

  • Face recognition distance: 0.3 m ~ 1.5 m
  • Face recognition accuracy rate: > 99%
  • Face recognition duration: < 0.2 s
  • Card type: EM card

General

  • Power supply: 12 VDC

    Supports power supply by battery in the bracket

  • Power consumption: ≤ 6 W
  • Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity: 0 to 90% (No condensing)
  • Language: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese

Function

  • Face anti-spoofing: Support
