Description

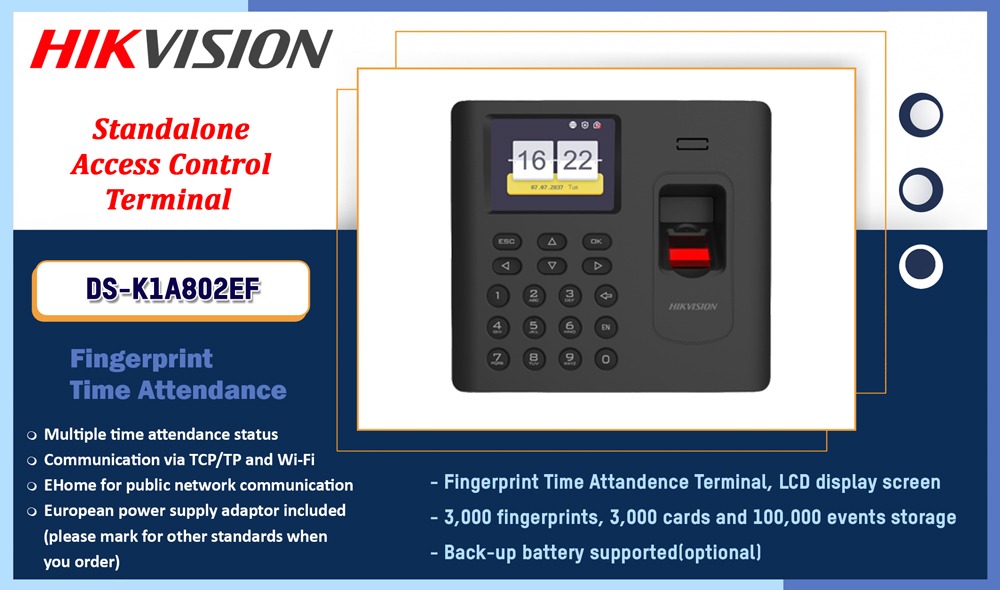

| Model | DS-K1A802EF |
|---|---|
| System Parameters | |
| Storage: | Up to 3,000 Valid Cards; Up to 100,000 Event Records; Up to 150,000 Attendance Records |
| Operation System: | Linux |
| Fingerprint Capacity: | Up to 3000 Fingerprints; Up to 10 Fingerprints for Each Person |
| Fingerprint Recognition Duration: | < 1 s |
| FAR (False Accept Rate): | ≤0.001% |
| FRR (False Rejection Rate): | ≤0.01% |
| Fingerprint Recognizer: | Optical Fingerprint Recognizer Module |
| Card Reading Mode: | Supports EM Card, Including Cards with Special Shapes; Supports Reading Card in Metal Environment |
| Card Reading Distance: | 0 to 5cm |
| iVMS-4200: | Support |
| Card Reading Response Duration: | < 1 s |
| Fingerprint Comparing Mode: | 1:1 and 1:N, N=3000 |
| Device Interfaces | |
| Transmission Rate: | LAN: 10/100 Mbps Self-adaptive |
| USB Interface: | USB2.0, Type A |
| Wi-Fi: | Support |
| General | |
| LCD Screen: | 2.8-inch 320 x 240 LCD-TFT Display Screen |
| Key Board: | Physical Keys (No Back Light) |
| Audio: | 1 Buzzer and 1 Loudspeaker |
| Power Supply: | 12 VDC/1 A |
| Lithium Battery: | Not Support |
| Appearance Color: | Black (Included), Gold (Optional), Silver (Optional), White (Optional) |
| Application Situation: | Indoor |
| Installation: | Surface Mounting, Metal Door Mounting, Desk Stand |
| Working Temperature : | -10° C to 55° C (14° F to 131° F) |
| Working Humidity: | 10% to 90% (Non-Condensing) |
| Dimensions (L×W×H): | 140 mm × 155 mm × 30 mm (5.51″ × 6.01″ × 1.18″) |
