Description

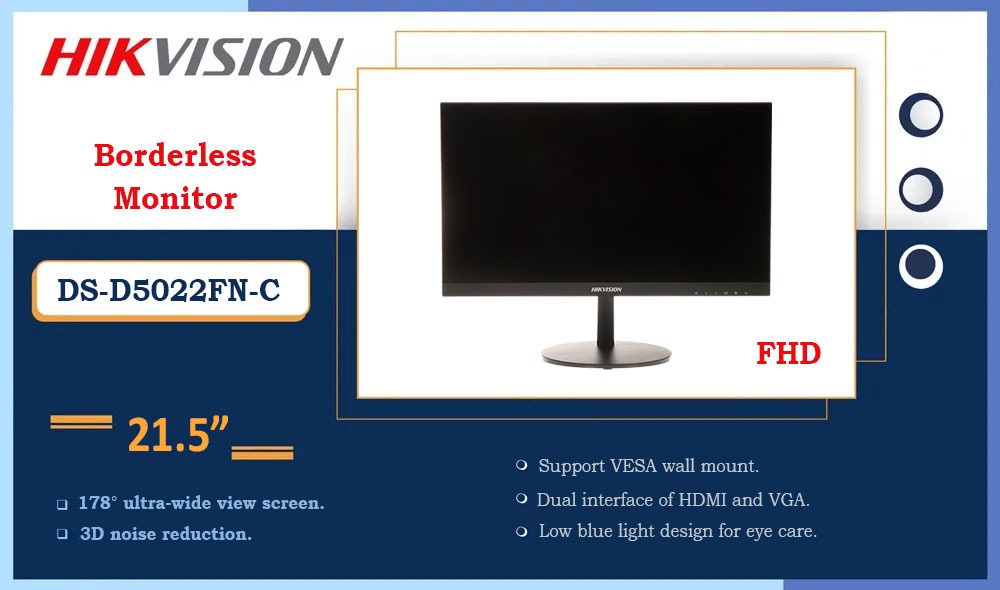

Datasheet: DS-D5022FN-C
User Manual: DS-D5022FN-C
Specification
Display
- Screen Size: 21.5 inch
- Active Display Area: 478.656 (H) mm × 260.28 (V) mm
- Resolution: 1920 × 1080
- Backlight: E-LED
- Pixel Pitch: 0.0831 (H) mm × 0.241 (V) mm
- Brightness: 250 cd/m²
- Viewing Angle: 178°(H)/178°(V)
- Color Depth: 8 bit
- Contrast Ratio: 3000:1
- Response Time: 6.5 ms
- Refresh Rate: 60 Hz
- Haze: 25%
- Reliability: 7 × 24 h
- Color Gamut: 72% NTSC
Interface
- Video & Audio Input: HDMI 1.4 × 1, VGA × 1
Power
- Power Supply: 100 to 240 VAC, 50/60 Hz
- Power Consumption: ≤ 22 W
- Standby Consumption: ≤ 0.5 W
Working Environment
- Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity: 20% to 90% RH (without condensation)
- Storage Temperature: –20 ℃ to 60 ℃ (–4 ℉ to 140 ℉)
- Storage Humidity: 10% to 90% RH (without condensation)
General
- Casing Material: Plastic
- VESA: 75 mm × 75mm，4-M6 × 6 screw holes
- Bezel Width: Top: 1.88 mm, bottom: 19 mm, left: 1.88 mm, right: 1.88 mm
- Product Dimensions (W × H × D):
- With base: 492.356 (W) mm × 390.11 (H) mm × 200.20 (D) mm (19.38” ×15.36” × 7.88”)
- Without base: 492.356 (W) mm × 289.680 (H) mm × 43.88 (D) mm (19.38” × 11.40” × 1.73”)
- Package Dimensions (W × H × D): 647 (W) mm × 111 (H) mm × 406 (D) mm (25.49 ” × 4.37 ” × 15.99 ”)
- Net Weight: 2.6 ± 0.5 kg (5.7 ± 1.1 lb.)
- Gross Weight: 4.0 ± 0.5 kg (8.8 ± 1.1 lb.)
- Packing List: Monitor ×1, AC power cable × 1, base bracket × 1, user manual × 1, quick start guide × 1, HDMI cable × 1
