Description

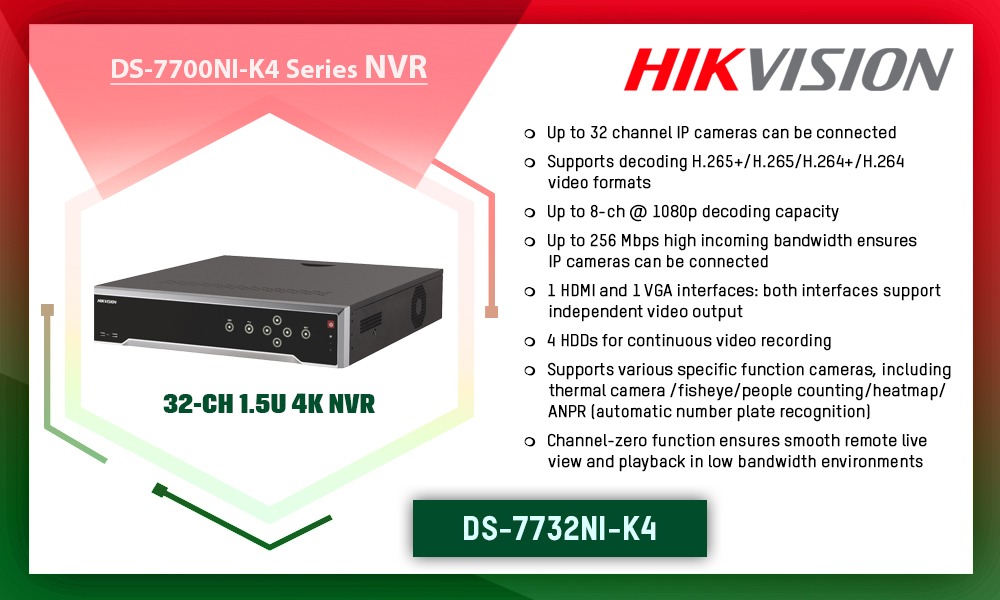

Datasheet: DS-7732NI-K4
User Manual: DS-7732NI-K4
Video And Audio
- IP Video Input: 32-ch
- Incoming Bandwidth: 256 Mbps
- Outgoing Bandwidth: 160 Mbps
- HDMI Output: 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1kΩ)
Decoding
- Decoding Format: H.265/H.265+/H.264+/H.264/MPEG4
- Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback: 16-ch
- Decoding Capability: 2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)
Network
- Protocol: TCP/IP, DHCP, IPv4, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Auxiliary Interface
- SATA: 4 SATA interfaces
- Capacity: Up to 6TB capacity for each HDD
- Serial Interface: 1 RS-485 (half-duplex), 1 RS-232, 1 keyboard (optional)
- USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out: 16/4
General
- Power Supply: 100 to 240 VAC, 50 to 60Hz, 1 A
- Consumption: ≤ 20 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10 to 90 %
- Dimension (W × D × H): 445 × 400 ×71 mm ( 17.5″× 15.7″ × 2.8″)
- Weight: ≤ 5 kg (11. lb)
