Description

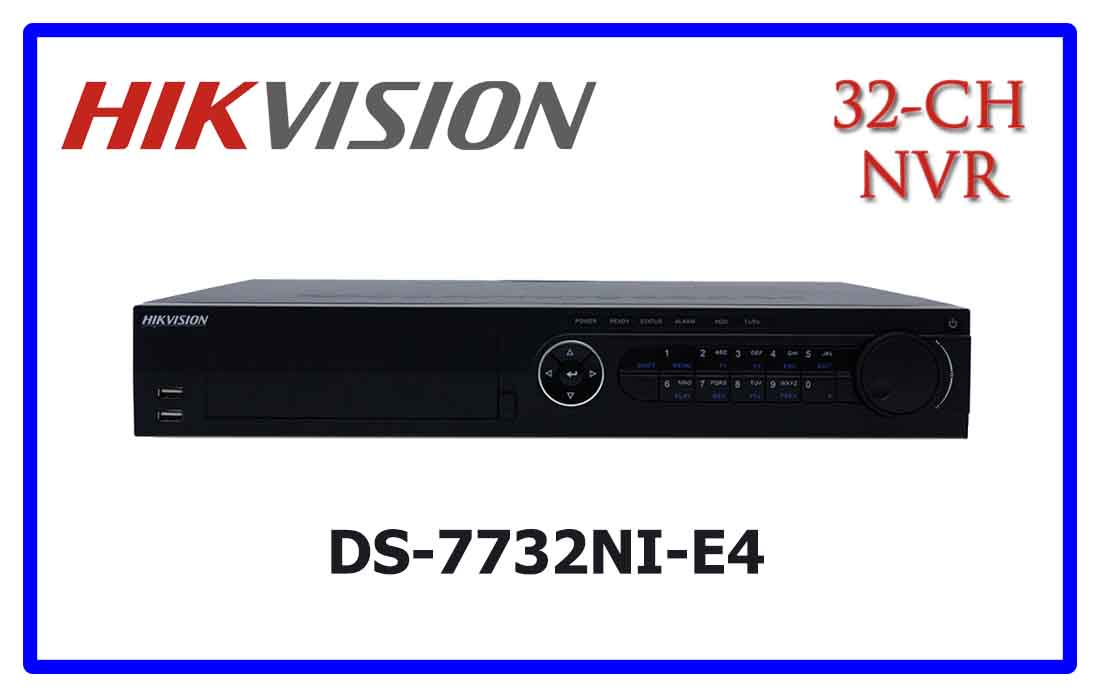

| Model | DS-7732NI-E4 |
|---|---|
| IP video input: | 32-ch |
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Incoming bandwidth: | 160Mbps |
| Outgoing bandwidth: | 80Mbps |
| Remote connection: | 128 |
| HDMI/VGA output: | 1-ch, resolution: 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz |
| Recording Resolution: | 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Frame Rate: | Main stream: 50 fps (P) / 60 fps (N) Sub-stream: 50 fps (P) / 60 fps (N) |
| Live view / Playback: | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability: | 16-ch@4CIF, 12-ch@720P, 6-ch@1080P |
| SATA: | 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs |
| Capacity: | Up to 6TB capacity for each HDD |
| Network Interface: | 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces |
| USB Interface: | Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0 |
| Alarm In: | 16-ch |
| Alarm Out: | 4-ch |
| Power Supply: | 100~240VAC |
| Consumption(without hard disk and POE): | ≤ 20W |
| Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Working Humidity: | 10 % ~ 90 % |
| Chassis: | 19-inch rack-mounted 1.5U chassis |
| Dimensions: | 445 × 390 × 70mm (17.5 ×15.3 × 2.8 inch) |
| Weight(without HDD): | ≤ 4 Kg (8.82 lb) |
