Description

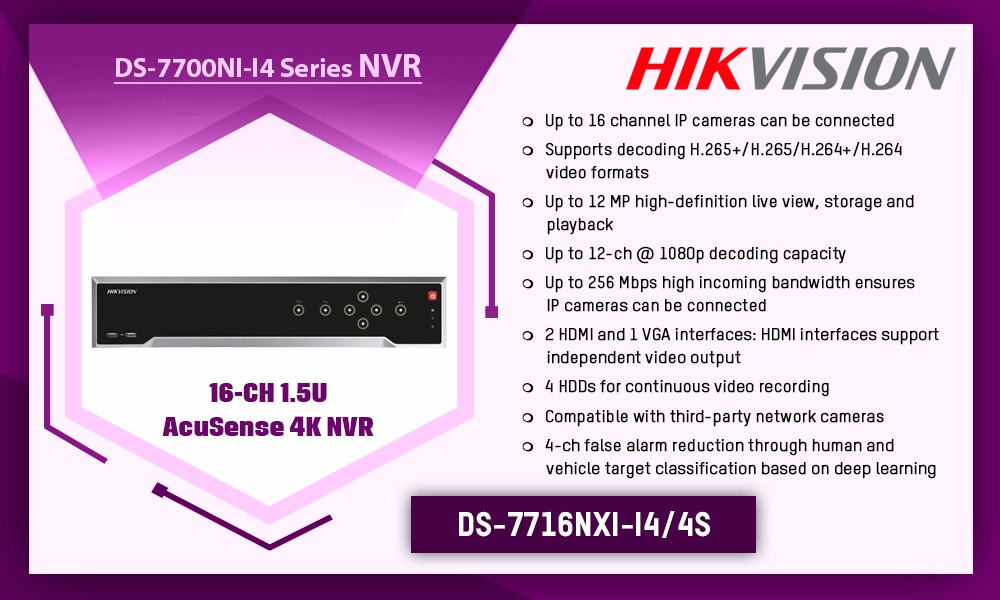

Datasheet: DS-7716NXI-I4/4S
User Manual: DS-7716NXI-I4/4S
Perimeter Protection
- Human/Vehicle Analysis: False alarm filtering for 4-ch behavior (line crossing and intrusion) detection for network camera with resolution less than or equal to 4 MP.
Video And Audio
- IP Video Input: 16-ch
- HDMI Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,4K resolution is only available for HDMI. ,1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
- VGA Output: HDMI,VGA
- CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Incoming Bandwidth: 256 Mbps/200 Mbps
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding
- Format: H.265/H.265+/H.264/H.264+/MPEG4
- Decoding Capability: 12-ch@1080p
- Synchronous Playback: 16-ch
- Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/,DCIF/2CIF/CIF/QCIF
Network
- Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
- Interface: N/A
RAID
- RAID Type: No
Auxiliary Interface
- SATA: 4 SATA interfaces for four 3.5-inch HDDs
- ESATA: 1 eSATA interface
- Capacity: Up to 8 TB capacity for each HDD
- Serial Interface: RS-485 (half-duplex), RS-232, Keyboard
- USB Interface
- Front panel: 2 × USB 2.0
- Rear panel: 1 × USB 3.0
- Alarm In/Out: 16/4
General
- Power Supply: 100 to 240 VAC ≤ 80 W
- Consumption: ≤ 30 W
- Working Temperature: -10° C to +55° C (+14° F to +131° F)
- Working Humidity: 10 to 90 %
- Chassis: 1.5U chassis
- Dimension (W × D × H): 445 × 400 ×71 mm ( 17.5″× 15.7″ × 2.8″)
- Weight: ≤ 5 kg (11 lb)
