Description

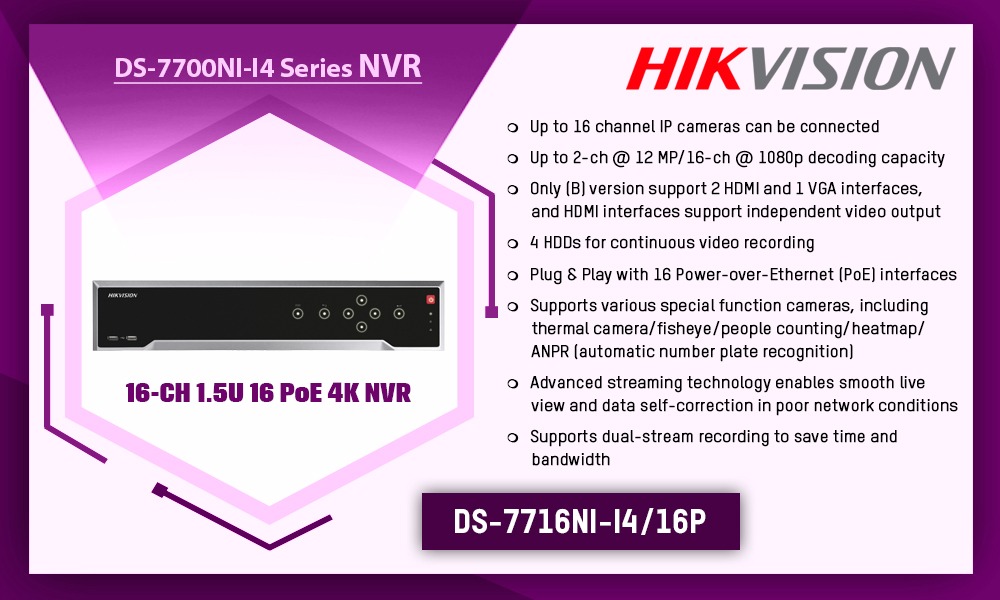

Datasheet: DS-7716NI-I4/16P
User Manual: DS-7716NI-I4/16P
Video And Audio
- IP Video Input: 16-ch
Up to 12 MP resolution - Outgoing Bandwidth: 256 Mbps
- VGA Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output
- Incoming Bandwidth: 160 Mbps
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
- Dual-Stream Recording: Support
- Stream Type: Video, Video & Audio
- Audio Compression: G.711ulaw/G.711alaw/G.722/G.726
- Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4
- Decoding Capability: 2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
- Synchronous Playback: 16-ch
- Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
Network
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Remote Connection: 128
- Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
- Interface: 16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
- Power: ≤ 200 W
- Standard: IEEE 802.3 af/at
Auxiliary Interface
- ESATA: 1 eSATA interface (optional)
- SATA: 4 SATA interfaces for 4HDDs
- Capacity: Up to 10 TB capacity for each disk
- Serial Interface: 1 RS-485 (half-duplex), 1 RS-232
- USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out: 16/4 (16/8 optional)
General
- Power Supply: 100 to 240 VAC, 50 to 60 Hz
- Consumption: ≤ 20 W (without HDD and PoE off)
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Chassis: 19-inch rack-mounted 1.5U chassis
- Dimension (W × D × H): 440 × 387 × 75 mm ( 17.3″× 15.2″ × 3.0″)
- Weight: ≤ 5 kg (11 lb) (without HDD)
Certification
- FCC: Part 15 Subpart B, ANSI C63.4-2014
- CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
