Description

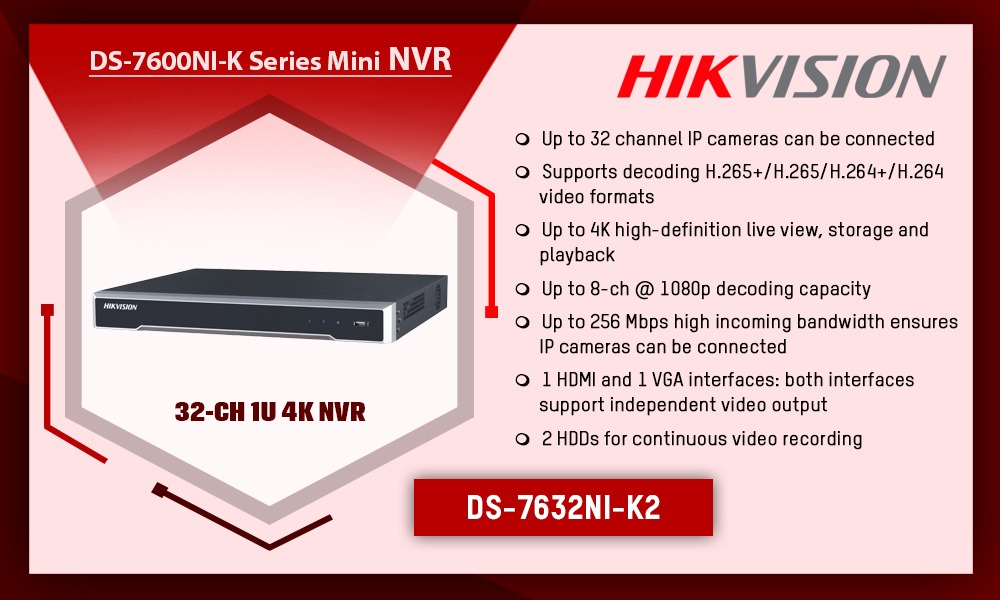

Datasheet: DS-7632NI-K2
User Manual: DS-7632NI-K2
Video And Audio
- IP Video Input: 32-ch
- HDMI Output: 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Incoming Bandwidth: 160 Mbps ,256 Mbps
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1kΩ)
Decoding
- Format: H.265+,H.265,H.264+,H.264
- Decoding Capability: 8-ch@1080p
- Synchronous Playback: 16-ch
- Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Network
- Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
- Interface: N/A
RAID
- RAID Type: No
Auxiliary Interface
- SATA: 2
- Capacity: Up to 6 TB capacity for each HDD
- USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out: 4/1
General
- Power Supply: 12 VDC,≤ 40 W
- Consumption: ≤15 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10 to 90 %
- Dimension (W × D × H): 385 × 315× 52 mm (15.2″ × 12.4″ × 2.0″)
- Weight: ≤ 1 kg (2.2 lb)
