Description

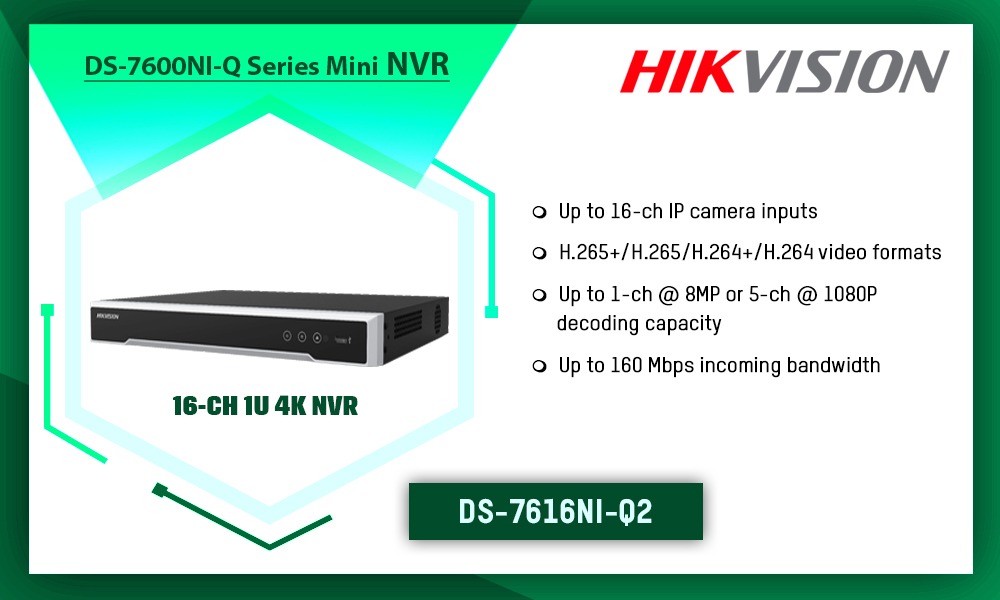

Datasheet: DS-7616NI-Q2
User Manual: DS-7616NI-Q2
Video And Audio
- IP Video Input: 16-ch
- HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output: 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Incoming Bandwidth: 160 Mbps
- Outgoing Bandwidth: 80 Mbps
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding
- Format: H.265+,H.265,H.264+,H.264
- Decoding Capability: 4-ch@1080p
- Synchronous Playback: 16-ch
- Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Network
- Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
- Interface: N/A
RAID
- RAID Type: No
Auxiliary Interface
- SATA: 2 SATA interfaces
- Capacity: Up to 8TB capacity for each disk
- USB Interface: 2 × USB 2.0
General
- Power Supply: 12 VDC, 2.1 A
- Consumption: ≤ 15W
- Working Temperature: -10 to +55º C (+14 to +131º F)
- Working Humidity: 10 to 90 %
- Chassis: 1U chassis
- Dimension (W × D × H): 385 × 315 × 52 mm (15.2″× 12.4″ × 2.0″)
- Weight: ≤ 1.8 kg (4.0 lb)
