Description

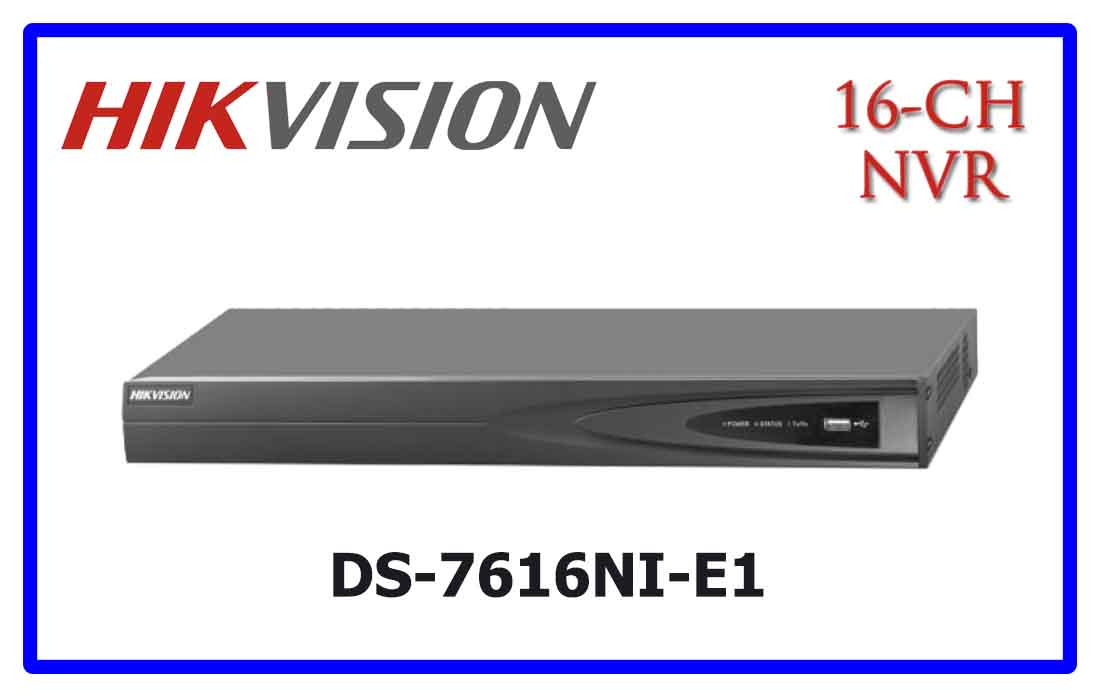

DS-7616NI-E1 – Product Description
| Model | DS-7616NI-E1 |
|---|---|
| IP video input: | 16-ch |
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Incoming bandwidth: | 160Mbps |
| Outgoing bandwidth: | 80Mbps |
| Remote connection: | 128 |
| HDMI/VGA output: | 1-ch, resolution: 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz |
| Recording Resolution: | 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Frame Rate: | Main stream: 50 fps (P) / 60 fps (N) Sub-stream: 50 fps (P) / 60 fps (N) |
| Audio Output: | 1-ch, RCA (Linear, 1kΩ) |
| Synchronous Playback: | 16-ch |
| Live view / Playback: | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability: | 6-ch@1080P |
| SATA: | 1 SATA interface for 1 HDD |
| Capacity: | Up to 4TB for each disk |
| Network Interface: | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| USB Interface: | 1 × USB 2.0 and 1 × USB 3.0 |
| Alarm In: | 4-ch(optional) |
| Alarm Out: | 1-ch(optional) |
| Power Supply: | 12V DC |
| Consumption(without hard disk and POE): | ≤ 10W |
| Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Working Humidity: | 10 % ~ 90 % |
| Chassis: | 1U chassis |
| Dimensions: | 315 × 230 × 45 mm (12.4 × 9.0 × 1.8 inch) |
| Weight(without HDD): | ≤ 1 kg |
