Description

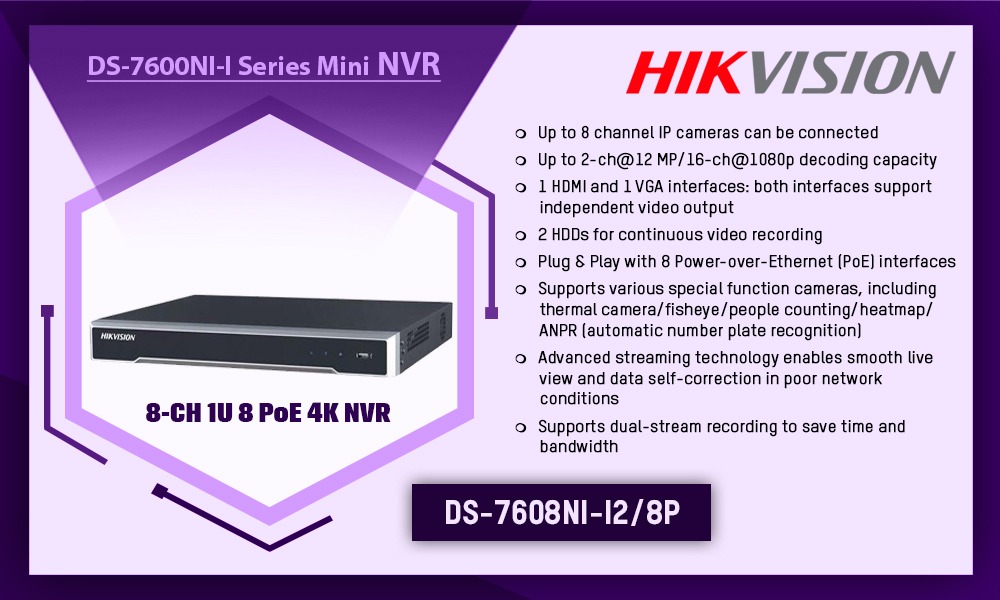

Datasheet: DS-7608NI-I2/8P
User Manual: DS-7608NI-I2/8P
Video And Audio
- IP Video Input: 8-ch
Up to 12 MP resolution - Incoming Bandwidth: 80 Mbps
- Outgoing Bandwidth: 256 Mbps
- HDMI Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- CVBS Output: N/A (1-ch is optional, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480}
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
- Video Output Mode: HDMI/VGA independent output
Decoding
- Dual-Stream Recording: Support
- Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4
- Decoding Capability: 2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
- Synchronous Playback: 8-ch
- Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
- Stream Type: Video, Video & Audio
- Audio Compression: G.711ulaw/G.711alaw/G.722/G.726
Network
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Remote Connection: 64
- Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
- Interface: 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power: ≤ 120 W
- Standard: IEEE 802.3 af/at
Auxiliary Interface
- SATA: 4 SATA interfaces
- Capacity: Up to 10 TB capacity for each HDD
- Alarm In/Out: 4/1
- USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
General
- Power Supply: 100 to 240 VAC, 50 to 60 Hz
- Consumption: ≤ 15 W (without HDD and PoE off)
- Working Temperature: -10 to +55º C (+14 to +131º F)
- Working Humidity: 10 to 90 %
- Dimension (W × D × H): 385 × 315 × 52 mm (15.2″ × 12.4″ × 2.0″)
- Weight: ≤ 3 kg (6.6 lb.)
Certification
- FCC: Part 15 Subpart B, ANSI C63.4-2014
- CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
