Description

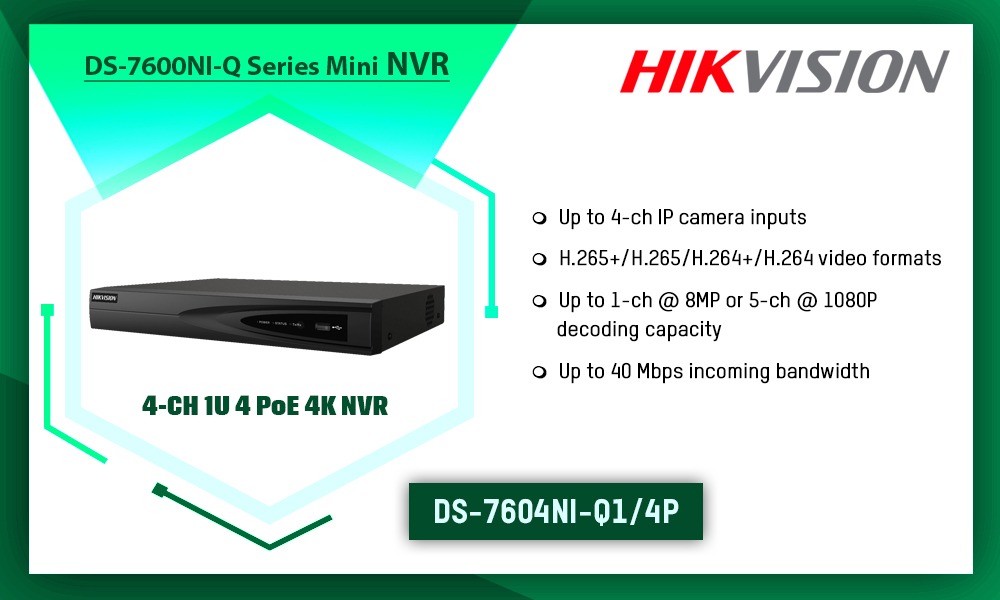

Datasheet: DS-7604NI-Q1/4P
User Manual: DS-7604NI-Q1/4P
Video And Audio
- IP Video Input: 4-ch
- HDMI Output: 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
- VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode: HDMI/VGA simultaneous output
- Incoming Bandwidth: 40 Mbps
- Outgoing Bandwidth: 80 Mbps
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding
- Format: H.265+,H.265,H.264+,H.264
- Decoding Capability: 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
- Synchronous Playback: 4-ch
- Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Network
- Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
- Interface: 4-ch
- Power: ≤ 50W
- Standard: IEEE 802.3 af/at
RAID
- RAID Type: No
Auxiliary Interface
- SATA: 1
- Capacity: Up to 8TB capacity for each disk
- USB Interface: 2 × USB 2.0
- Alarm In/Out: N/A (4/1 is optional)
General
- Power Supply: 48 VDC, 1.35 A
- Consumption: ≤ 10 W (without enabling PoE)
- Working Temperature: -10 to +55º C (+14 to +131º F)
- Working Humidity: 10 to 90 %
- Chassis: 1U
- Dimension (W × D × H): 320 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
- Weight: ≤ 1 kg (2.2 lb)
