Description

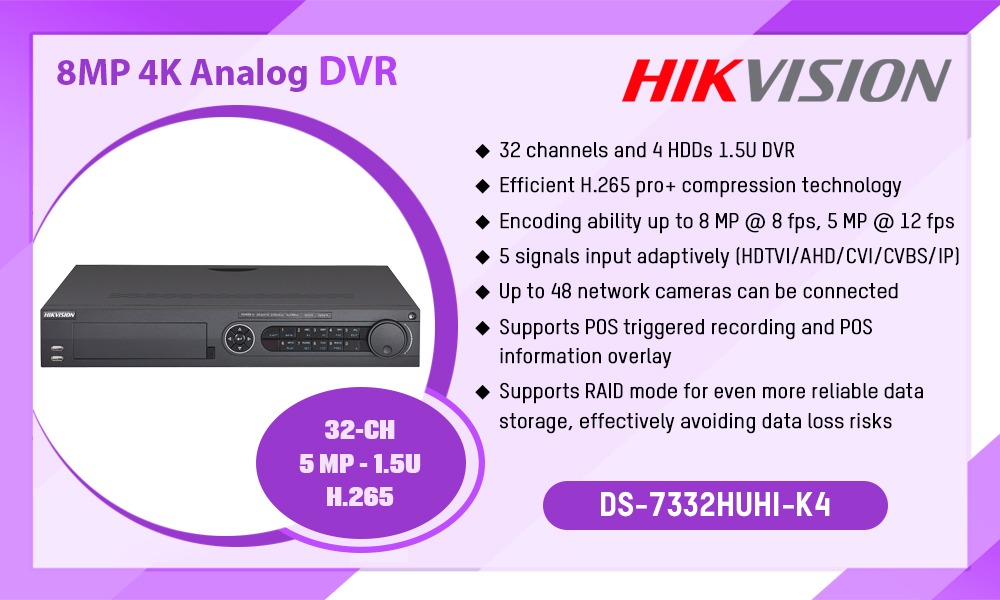

Datasheet: DS-7332HUHI-K4
User Manual: DS-7332HUHI-K4
Recording
- Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution: 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame Rate
- Main stream:,8 MP@8fps/5 MP@12fps; 4 MP@15fps; 3 MP@18fps;,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
- Sub-stream:,WD1/4CIF/CIF@25fps (P)/30fps (N),
- Video Bitrate: 32 Kbps to 10 Mbps
- Dual-Stream: Support
- Stream Type: Video, Video & Audio
- Audio Compression: G.711u
- Audio Bitrate: 64 Kbps
Video And Audio
- IP Video Input: 16-ch (up to 48-ch);Up to 8 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input: 32-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
- AHD Input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
- CVBS Input: PAL/NTSC
- CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- HDMI 1 Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI 2 Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Audio Input: 4-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
- Synchronous Playback: 16-ch
Network
- Remote Connection: 128
- Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
- Network Interface: 2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
- SATA: 4 SATA interfaces
- ESATA: Support
- Capacity: Up to 10 TB capacity for each disk
- Serial Interface: RS-232, RS-485 (full-duplex), Keyboard
- Alarm In/Out: 16/4
- USB Interface: Front panel: 2 × USB 2.0, Rear panel: 1 × USB 3.0
General
- Power Supply: 100 to 240 VAC, 50 to 60 Hz, 1.3 A
- Consumption: ≤ 74 W
- Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity: 10% to 90%
- Dimension (W × D × H): 440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch)
- Weight: ≤ 7 kg (15.4 lb, without HDD)
