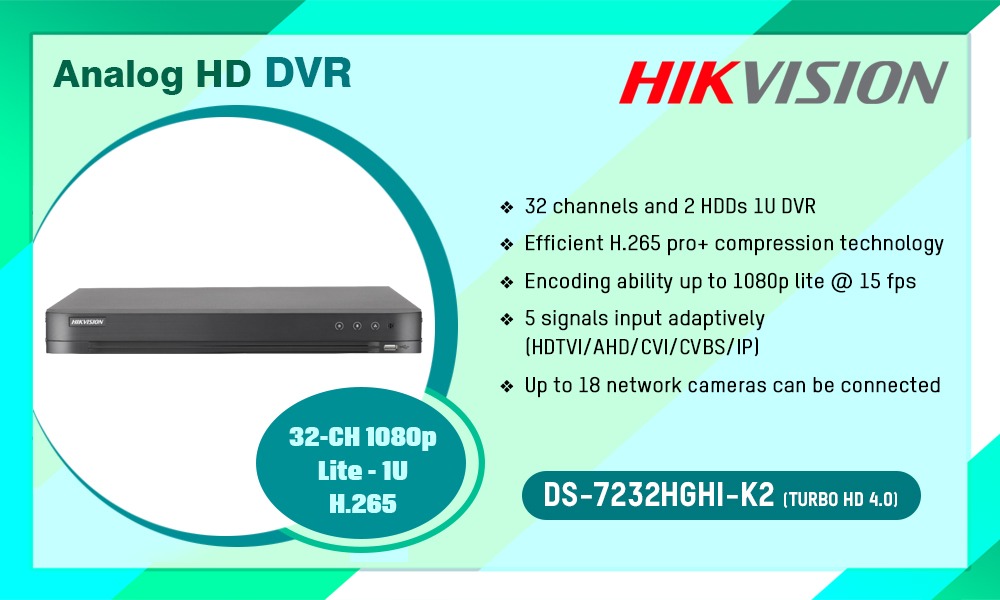

DS-7232HGHI-K2-(TURBO-HD-4)

Description

Datasheet: DS-7232HGHI-K2-(TURBO-HD-4)

User Manual: DS-7232HGHI-K2-(TURBO-HD-4)

Recording

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution: 1080p lite/720p/VGA/WD1/4CIF/CIF
• Frame Rate
  • Main stream:
    • For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)
    • For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)
    • For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
  • Sub-stream:
    • For 1080p and 720p stream access: CIF/QVGA@15fps
    • For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N)
• Video Bitrate: 32 Kbps to 4 Mbps
• Dual-Stream: Support
• Stream Type: Video, Video & Audio
• Audio Compression: G.711u
• Audio Bitrate: 64 Kbps

Video And Audio

• IP Video Input: 2-ch (up to 18-ch)
  • Up to 5 MP resolution
    Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input: 32-ch
  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI Input: 1080p25, 1080p30, 720p25, 720p30
• AHD Input: 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
• CVBS Input: PAL/NTSC
• HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω)
• Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback: 16-ch

Network

• Remote Connection: 128
• Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface: 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface

• SATA: 2 SATA interface
• Capacity: Up to 10 TB capacity for each disk
• USB Interface
  • Front panel: 1 × USB 2.0
  • Rear panel: 1 × USB 3.0

General

• Power Supply: 12 VDC, 3.2 A
• Consumption: ≤ 18 W
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 380 × 320 × 48 mm (10.2 × 8.7 × 1.8 inch)
• Weight: ≤ 2.2 kg (4.9 lb)
