Description

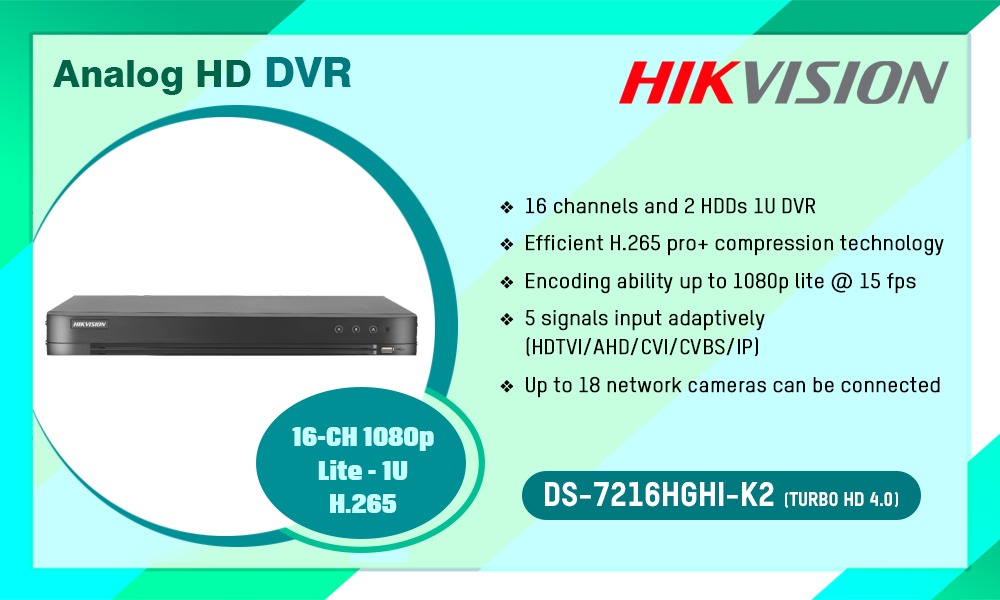

Datasheet: DS-7216HGHI-K2-(TURBO-HD-4)
User Manual: DS-7216HGHI-K2-(TURBO-HD-4)
Recording
- Encoding Resolution
- Main stream:
- For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)
- For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)
- For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
- Sub-stream:
- For 1080p and 720p stream access: CIF/QVGA@15fps
- For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N)
- Main stream:
- Video Bit Rate: 32 Kbps to 4 Mbps
- Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Dual Stream: Support
- Stream Type: Video, Video & Audio
- Audio Compression: G.711u
- Audio Bit Rate: 64 Kbps
Video And Audio
- Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Synchronous Playback: 16-ch
- IP Video Input: 2-ch (up to 18-ch);Up to 5 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
- HDTVI Input: 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
- CVBS Input: PAL/NTSC
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Analog Video Input: 16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- AHD Input: 1080p25, 1080p30, 720p25, 720p30
- CVBS Output: N/A
- HDMI/VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;HDMI/VGA simultaneous output
Network
- Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Remote Connections: 128
- Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
- Capacity: Up to 10 TB capacity for each disk
- Serial Interface: N/A
- USB Interface: 2 × USB 2.0
- Alarm In/Out: N/A
- SATA: 2 SATA interface
General
- Consumption(Without HDD): ≤ 10 W
- Working Humidity: 10% to 90%
- Power Supply: 12 VDC
- Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
- Dimensions(W × D × H): 380 × 320 × 48 mm (10.2 × 8.7 × 1.8 inch)
- Weights (Without HDD): ≤ 2.0 kg (4.4 lb)
