Description

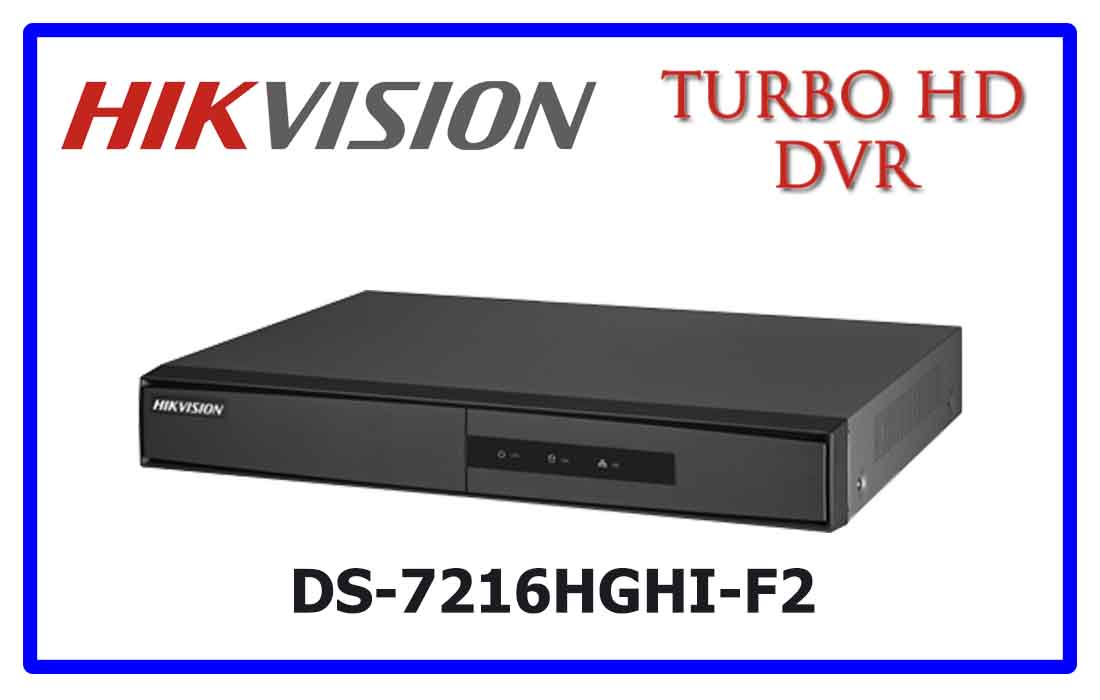

DS-7216HGHI-F2 – Product Description
| Model | DS-7216HGHI-F2 |
|---|---|
| Audio Input: | 1-ch |
| Video Compression: | H.264,H.264+ |
| Analog and HD-TVI video input: | 16-ch BNC interface (1.0Vp-p, 75 Ω) |
| Supported camera types: | Support HDTVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz, Support AHD input: 720P/25Hz, 720P/30Hz, support CVBS input |
| IP Video Input: | 2-ch Up to 2MP resolution |
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression: | G.711u |
| Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
| HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution: | When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF; When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF |
| Frame Rate: | Main stream: When 1080p Lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
| Video Bit Rate: | 32 Kbps ~ 4 Mbps |
| Stream Type: | Video/Video&Audio |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate: | 64kbps |
| Dual Stream: | Support |
| Playback Resolution: | 1080p lite/720p/WD1/4CIF/VGA/CIF |
| Synchronous Playback: | 16-ch |
| Remote connections: | 128 |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Interface Type: | 2 SATA Interfaces |
| Capacity: | Up to 6 TB capacity for each disk |
| Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface |
| USB Interface: | 2 USB 2.0 Interfaces |
| Power Supply: | 12V DC |
| Consumption: | ≤ 20W(without hard disks) |
| Working Temperature: | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Working Humidity: | 10% ~ 90% |
| Chassis: | 10% ~ 90% |
| Dimensions: | 380 × 290 × 48 mm (14.9 × 11.4 × 1.9 inch) |
| Weight: | ≤ 2 kg (4.4 lb) (without hard disks) |
