Description

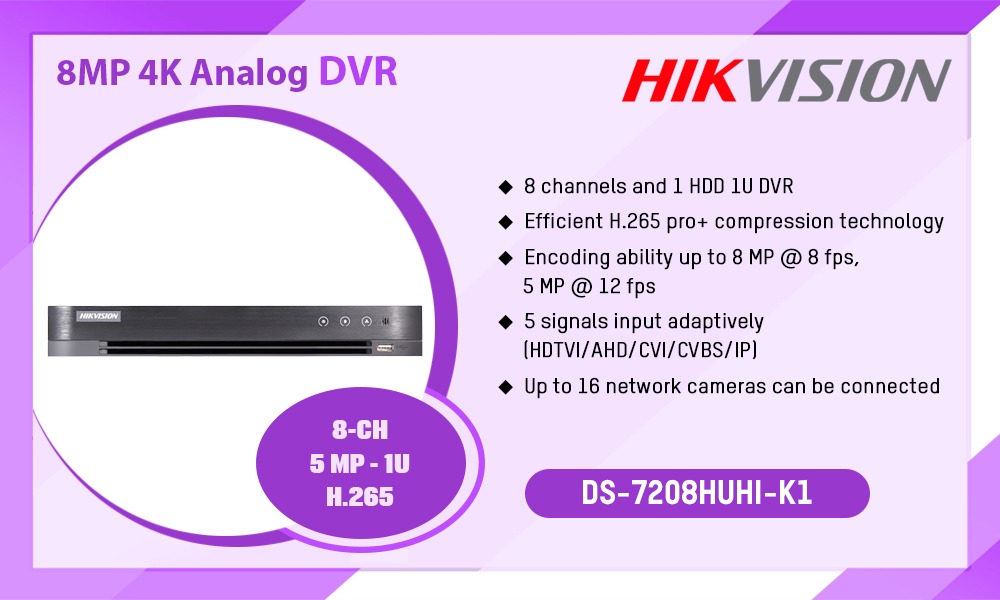

Datasheet: DS-7208HUHI-K1
User Manual: DS-7208HUHI-K1
Recording
- Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution: 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame Rate
- Main stream: ,8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
- Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N) ,
- Video Bit Rate: 32 Kbps to 10 Mbps
- Dual Stream: Support
- Stream Type: Video, Video & Audio
- Audio Compression: G.711u
- Audio Bit Rate: 64 Kbps
Video And Audio
- IP Video Input: 8-ch (up to 16-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input: 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- AHD Input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
- CVBS Input: PAL/NTSC
- Audio Input: 4-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous Playback: 8-ch
- HDTVI Input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
- VGA/HDMI Output
- VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω)
Network
- Remote Connections: 64
- Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Network Interface: 1,,RJ45 10M/100M/1000M ,self-adaptive ,Ethernet interface,
Auxiliary Interface
- SATA: 1 SATA interface
- Capacity: Up to 10 TB capacity for each disk
- Alarm In/Out: 8/4
- USB Interface: Front panel: 1 × USB 2.0,Rear panel: 1 × USB 3.0
- Serial Interface: RS-485 (half-duplex)
General
- Power Supply: 12 VDC
- Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity: 10% to 90%
- Dimensions (W × D × H): 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
- Weights (Without HDD): ≤ 2 kg (4.4 lb)
- Consumption (Without HDD): ≤ 20 W
