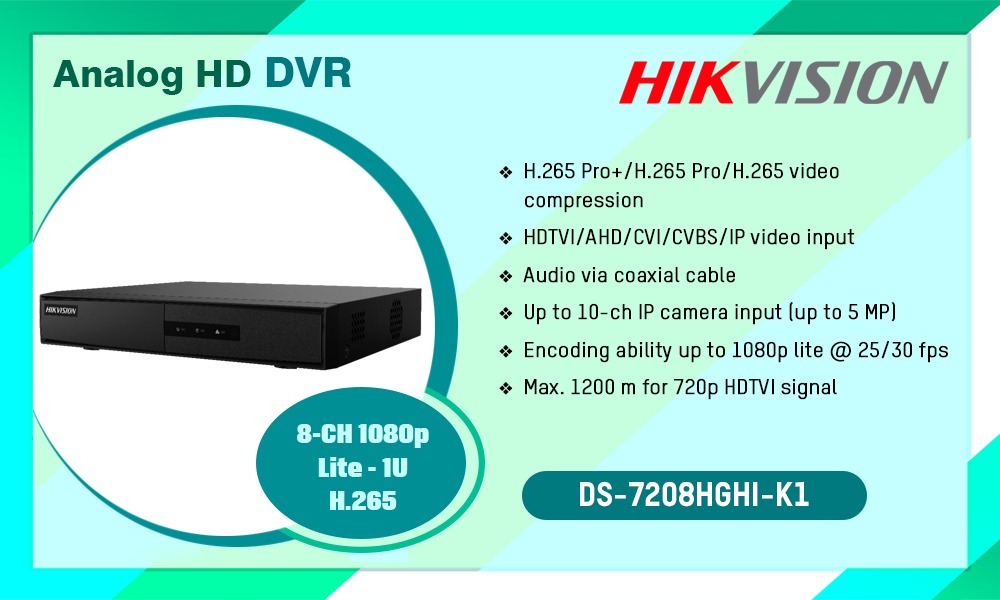

DS-7208HGHI-K1

Description

Datasheet: DS-7208HGHI-K1

User Manual: DS-7208HGHI-K1

Recording

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution
  • When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
  • When 1080p lite mode enabled: 1080p Lite/HD 720p Lite/WD1/4CIF/VGA/CIF
• Frame Rate
  • Main stream:
    • When 1080p Lite mode not enabled:
      • For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
      • For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
    • When 1080p Lite mode enabled: 1080p Lite/HD 720p Lite/WD1/4CIF/VGA/CIF@15 fps
  • Sub-stream: CIF/QVGA@25 fps (P)/30 fps (N)
• Video Bitrate: 32 Kbps to 4 Mbps
• Stream Type: Video, Video & Audio
• Audio Compression: G.711u
• Audio Bitrate: 64 Kbps

Video And Audio

• IP Video Input: 2-ch (up to 10-ch)
  • Up to 5 MP resolution
    Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input: 8-ch
  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• AHD Input: 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
• CVBS Input: Support
• HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  HDMI/VGA simultaneous output
• VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  HDMI/VGA simultaneous output
• Audio Input: 1-ch RCA (2.0 Vp-p, 1 KΩ)
  8-ch via coaxial cable
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: Reuse the first audio input
• Synchronous Playback: 8-ch

Network

• Remote Connection: 32
• Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface: 1 RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

• SATA: 1 SATA interface
• Capacity: Up to 4 TB capacity for each disk
• USB Interface: Rear panel: 2 × USB 2.0
• Alarm In/Out: N/A

General

• Power Supply: 12 VDC, 1.5 A
• Consumption: ≤ 17 W
• Working Temperature: -10 °C to 55 °C (14 °F to +31 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
• Weight: ≤ 1 kg (2.2 lb)
