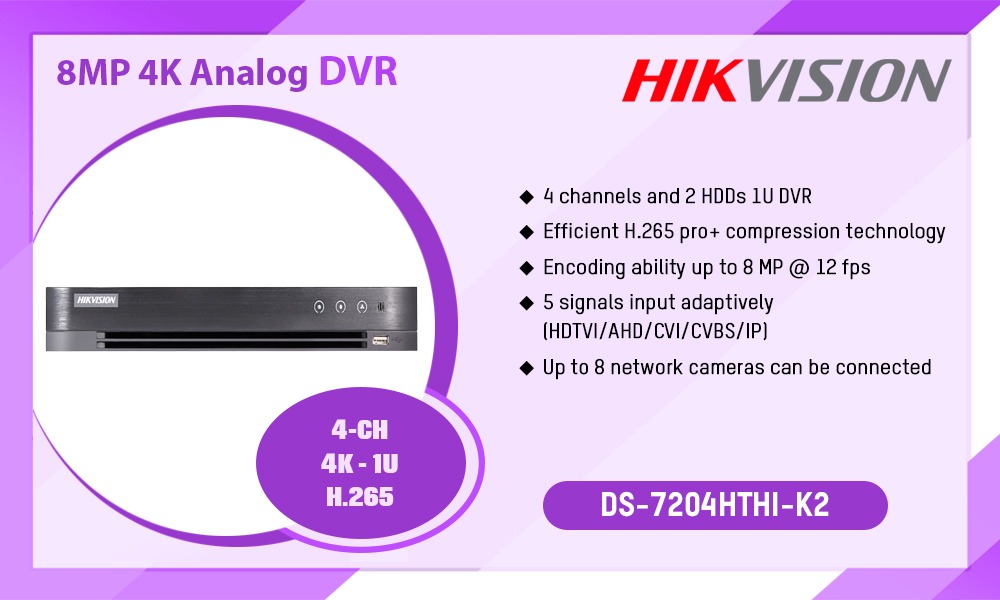

DS-7204HTHI-K2

Description

Datasheet: DS-7204HTHI-K2

User Manual: DS-7204HTHI-K2

Perimeter Protection

• Line Crossing Detection/Intrusion Detection: 4-ch

Recording

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Frame Rate
  • • Main stream:8 MP@15 fps/5 MP@20 fps/3K@20 fps/3 MP@18 fps
      4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
    • Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
• Video Bitrate: 32 Kbps to 16 Mbps
• Dual-Stream: Support
• Stream Type: Video, Video & Audio
• Audio Compression: G.711u
• Audio Bitrate: 64 Kbps

Video And Audio

• IP Video Input: 4-ch (up to 8-ch)
  • Up to 8 MP resolution
    Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input: 4-ch
  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI Input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
• AHD Input: 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
• CVBS Input: PAL/NTSC
• HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz,
  1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Input: 4-ch RCA (2.0 Vp-p, 1 KΩ)
  4-ch via coaxial cable
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback: 4-ch

Network

• Remote Connection: 32
• Total Bandwidth: 128 Mbps
• Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface: 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface

• Serial Interface: RS-485 (half-duplex)
• SATA: 2 SATA interfaces
• Capacity: Up to 10 TB capacity for each disk
• Alarm In/Out: 4/1
• USB Interface
  • Front panel: 1 × USB 2.0
  • Rear panel: 1 × USB 3.0

General

• Power Supply: 12 VDC, 2.3 A
• Consumption: ≤15 W (without HDD)
• Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
• Weight: ≤ 1.5 kg (3.3 lb) (without HDD)
