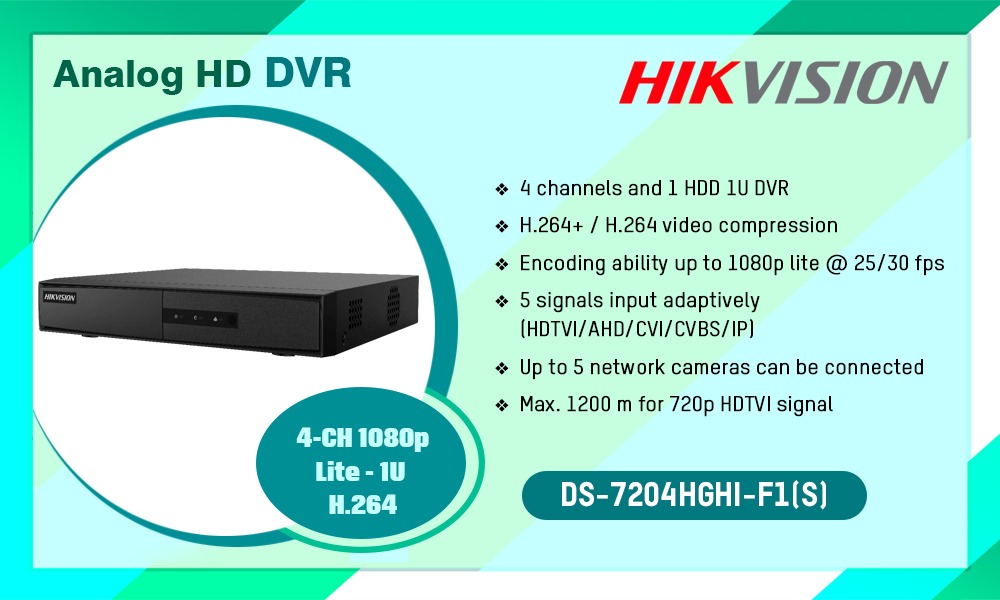

DS-7204HGHI-F1(S)

Description

Recording

• Video Compression: H.264+/H.264
• Encoding Resolution
  • When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
  • When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
• Frame Rate
  • Main stream:
    • When 1080p Lite mode not enabled
      • For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
    • When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
  • Sub-stream: ,2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N),
• Video Bit Rate: 32 Kbps to 4 Mbps
• Dual Stream: Support
• Stream Type: Video, Video & Audio
• Audio Compression: G.711u
• Audio Bit Rate: 64 Kbps

Video And Audio

• IP Video Input: 1-ch (up to 5-ch) Up to 960p resolution Support H.264+/H.264 IP cameras
• Analog Video Input: 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• Turbo HD Input: 1080p25, 1080p30, 720p25, 720p30
• AHD Input: 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
• CVBS Input: Support
• Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: Reuse the first audio input
• Synchronous Playback: 4-ch
• VGA/HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Network

• Remote Connections: 32
• Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface: 1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface

• SATA: 1 SATA interface
• Capacity: Up to 6 TB capacity for each disk
• Alarm In/Out: N/A
• USB Interface: Rear panel: 2 × USB 2.0

General

• Power Supply: 12 VDC
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Weights (Without HDD): ≤ 1 kg (2.2 lb)
• Consumption(Without HDD): ≤ 8 W
• Dimensions(W × D × H): 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
