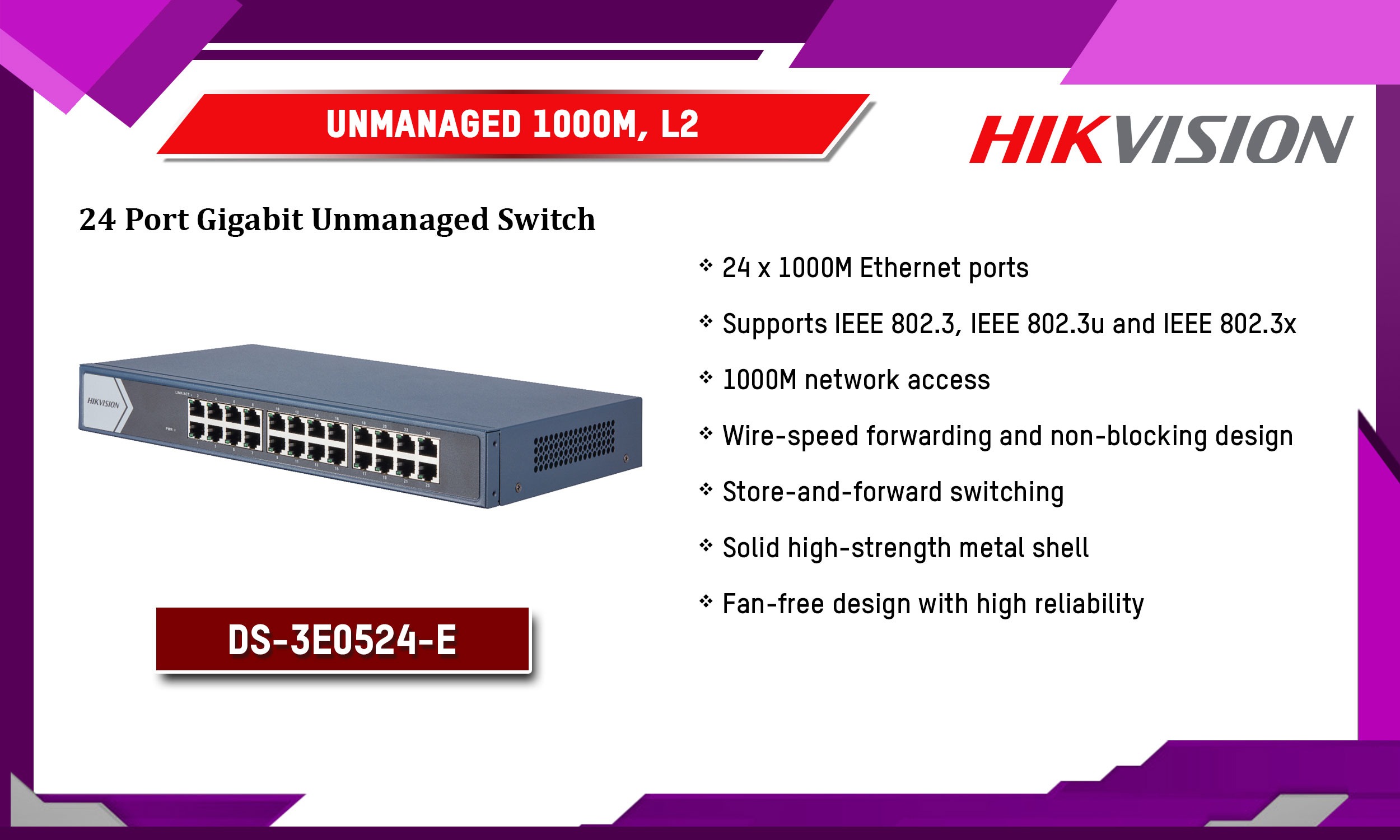

DS-3E0524-E

Hikvision cctv cameras and dvr, Nvr in colombo srilanka

Key Features

  • Layer 2 network switch designed for video data transmission
  • 24 x 10/100/1000 Mbps ethernet ports
  • IEEE 802.3, IEEE802.3u and IEEE802.3x network standards available
  • Store-and-forward switching
  • Delay of data-exchange less than 5us
  • Safe and reliable using 4 KV high surge protection
  • Plug and play ensures simplicity and convenience.
Category:

Description


Datasheet: DS-3E0524-E


User Manual: DS-3E0524-E

General
  • Operating Temperature: 0°C – 40°C
  • Storage Temperature: -40°C – 70°C
  • Power Supply: Input: 100-240 V AC, 50/60 Hz, 0.3 A,Output: 9 V DC, 1 A,
  • Storage Humidity: (5-90) % RH, non-condensing
  • Power Source: 2 kV
  • Dimension: 440mm×178.8mm×44mm
  • Operating Humidity: (10-90) % RH, non-condensing
  • Power Consumption: ≤12w
Performance
  • Store-And-Forward: 8 k
  • Max. Forwarding Rate: Ethernet: 14881 pps one port, Fast Ethernet: 148810 pps one port, Gigabit Ethernet: 1488100 pps one port
  • MAC Address Table: 4 k
  • MAC Address Learning: Automatic learning/Aging
  • Backplane Bandwidth: 32 Gbps
PoE
  • PoE Port: 16*10/100/1000Mbps auto-negotiation RJ45 ports
Port
  • Uplink Port: Port 15 and Port 16
  • RJ45 Port: 4 kV
  • Port Loop guard: Supported
  • Network
  • Transmission Speed: Ethernet: 10 Mbps (Half Duplex) / 20 Mbps (Full Duplex),Fast Ethernet: 100 Mbps (half-duplex)/200 Mbps (full-duplex),Gigabit Ethernet: 2000 Mbps (full-duplex)
  • Transmission Medium: Ethernet: CAT3 or better UTP/STP cable,Fast Ethernet: CAT5 or better UTP/STP cable,Gigabit Ethernet: CAT5E or CAT6 UTP/STP cable (recommended)
  • LED Indicator: 1 * power LED,16 * Link/Act LED
  • Network Standard: IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE 802.3x
Networdk
  • LED Indicator: 1 * power LED,16 * Link/Act LED
