Description

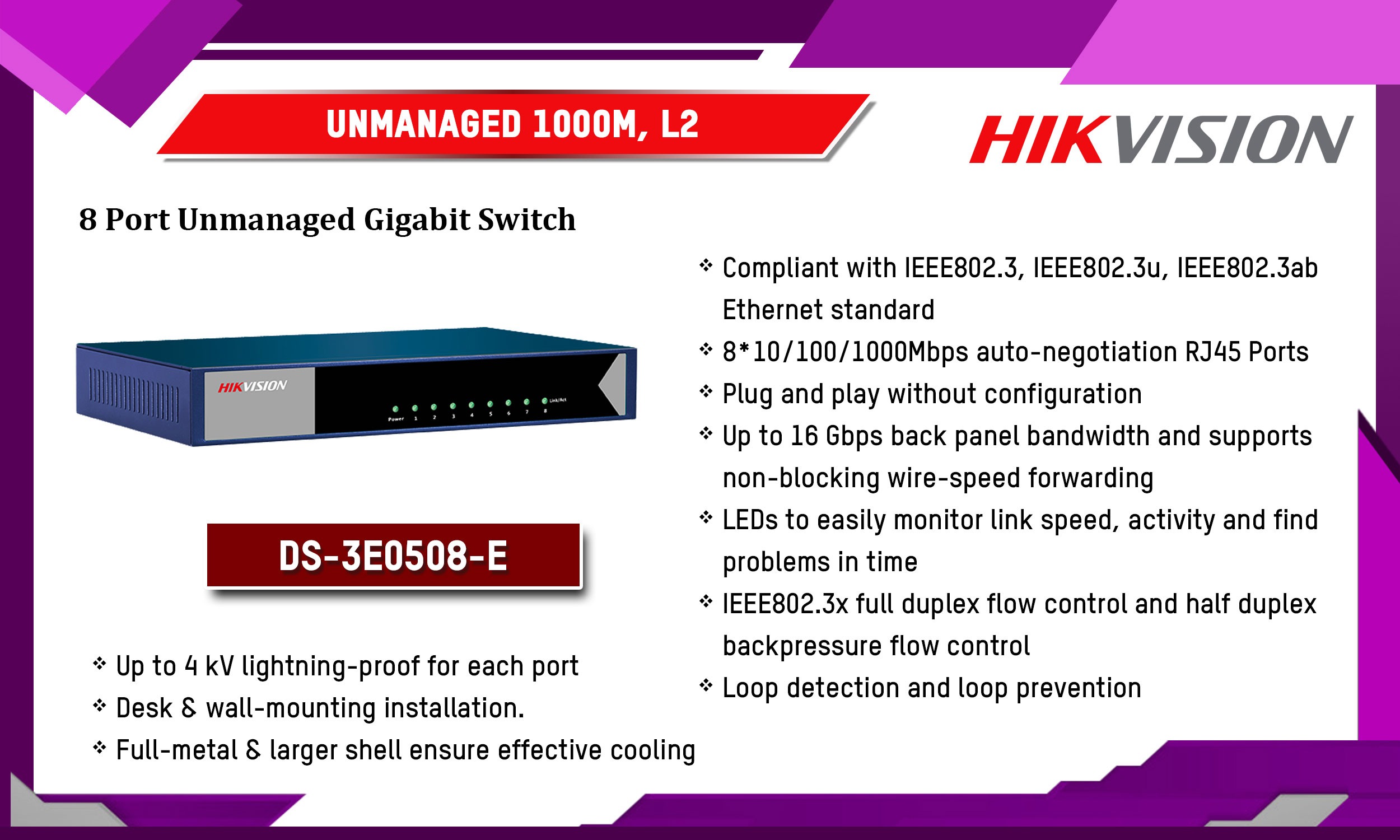

| Model | DS-3E0508-E |
|---|---|
| Device Type | Switch – 8 ports – unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 |
| Performance | Bandwidth: 16 Gbps |
| MAC Address Table Size | 4K entries |
| Features | Auto-negotiation, store and forward, full duplex mode, loop prevention, metal housing, MAC address learning, MAC address aging, lightning protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Status Indicators | Power, link/activity |
| Interfaces | 7 x 1000Base-T RJ-45 1 x 1000Base-T RJ-45 uplink |
| Power Device | External power adapter |
| Power Provided | 9 V – 1 A |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 5.5 Watt |
| Width | 7.4 in |
| Depth | 4.2 in |
| Height | 1.3 in |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 – 90% (non-condensing) |
