Description

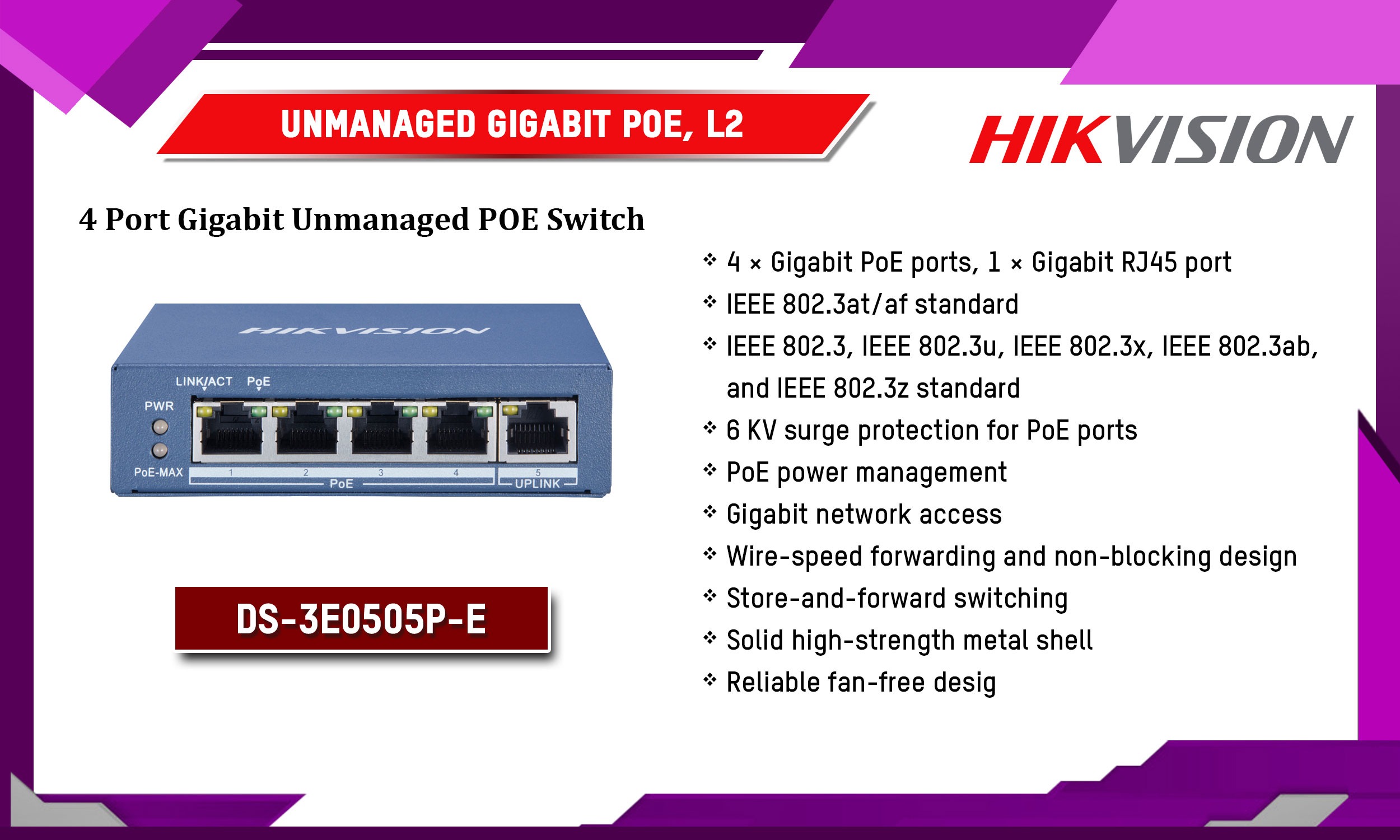

Datasheet: DS-3E0505P-E
Quick Start Guide: DS-3E0505P-E
Network Parameters
- Port Number: 4 × Gigabit PoE ports, and 1 × Gigabit RJ45 port
- Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive
- Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
- Forwarding Mode: Store-and-forward switching
- MAC Address Table: 2 K
- Internal Cache: 1 Mbits
- Switching Capacity: 10 Gbps
- Packet Forwarding Rate: 7.44 Mpps
PoE Power Supply
- PoE Standard: IEEE 802.3af, IEEE 802.3at
- Power Pin: End-span: 1/2(-), 3/6(+)
- PoE Port: Ports 1 to 4
- Max. Port Power: 30 W
- PoE Power Budget: 60 W
General
- Dimension (W × H × D): 105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Storage Humidity: 5% to 95% (no condensation)
- Gross Weight: 0.84 kg (1.85 lb)
- Net Weight: 0.26 kg (0.57 lb)
- Power Consumption In Idle: 5 W
- Shell: Metal material, fan-free design
- Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Power Supply: 48 VDC, 1.35 A
- Max. Power Consumption: 65 W
Approval
- EMC: FCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 10)
- Safety: UL (UL 62368-1); CB(IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2020)
- Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2009)
