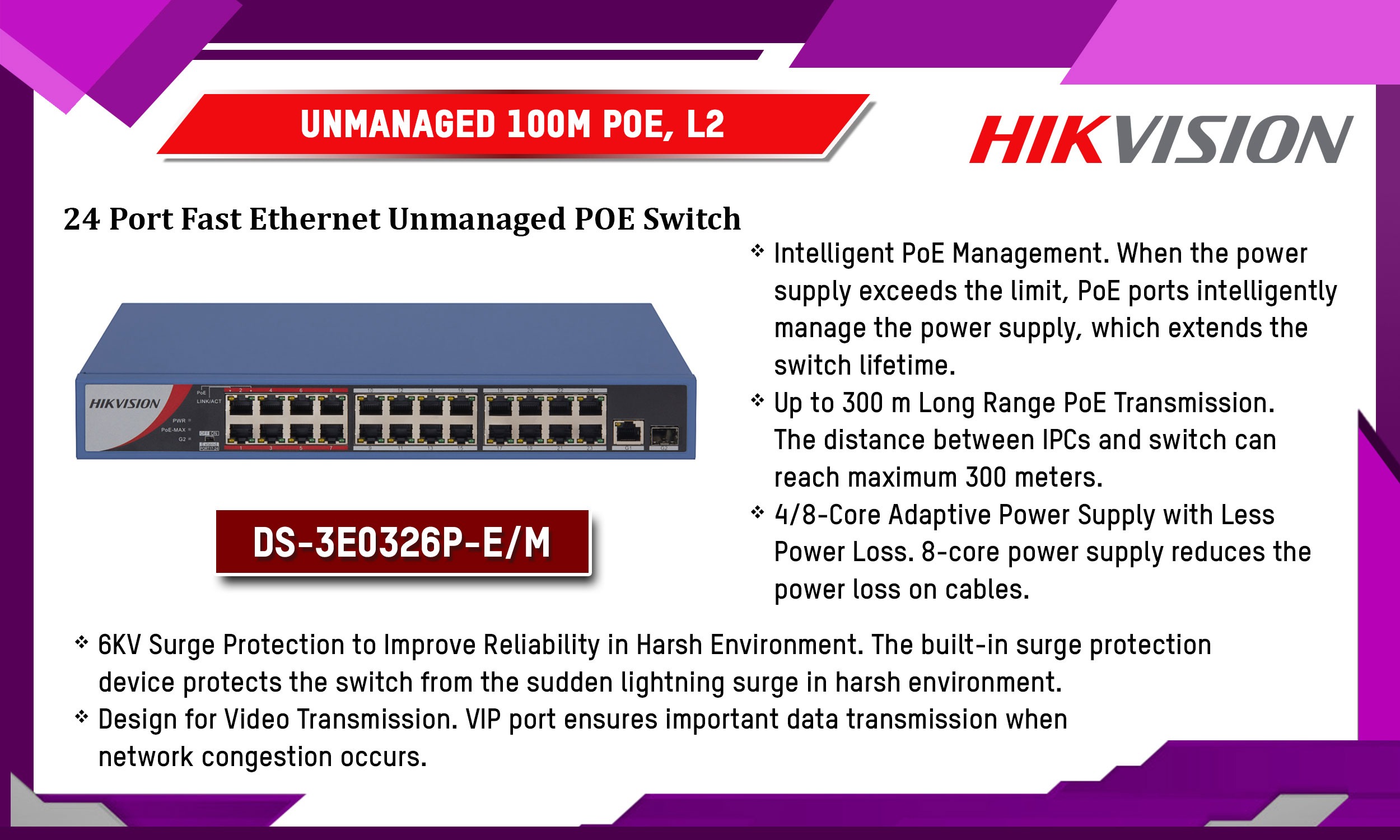

DS-3E0326P-E/M

DS-3E0326P-E/M

Key Features

Description

Model	DS-3E0326P-E/M
LAN ports:	24 x RJ45 10/100 Base-TX ( 24 x PoE (802.3af/at) ), 1 x port SFP – Uplink, 1 x RJ45 – Uplink
Transmission speed:	10 / 100 Mbps – 24 LAN & PoE ports, 10 / 100 / 1000 Mbps – 2 Uplink ports
Maximal output power:	30 W / port PoE
Maximal total power:	225 W
MAC addresses table:	4k
Management via WWW / console:
Main features:	Extend – 17 … 24 ports : 250 m, 10 Mbps @ UTP cat. 5e, 6 Support of the 4 network modes: Priority, Standard, Isolate, Extend protection against lightning discharges and voltage differences and strokes between devices High priority ports : 1 … 8 ports – Dedicated to video transmission PoE power mode : The device supports 8-pin power supply
LED diodes:	Power, Link/Act, SFP1, G1, PoE Max
Certificates:	CE
Power supply:	100 … 240 V AC
Operation temp:	0 °C … 40 °C
Weight:	2.1 kg
Dimensions:	294 x 229 x 44 mm
