DS-3E0105P-E/M

You are here: Home \ Products \ DS-3E0105P-E/M

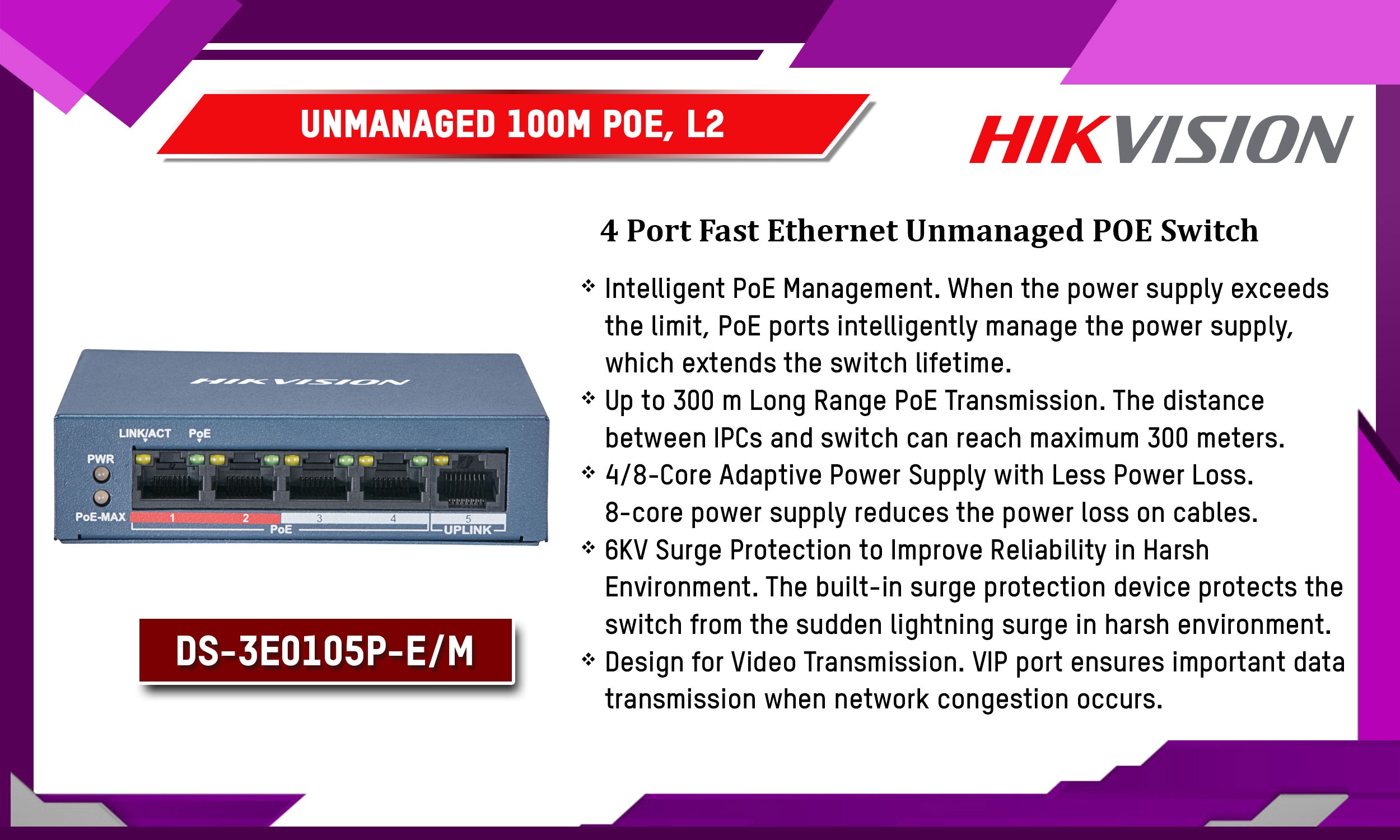

DS-3E0105P-E/M UnManaged 100M POE, L2 Hikvision Camera.lk Colombo Sri Lanka

DS-3E0105P-E/M

Key Features

Ports 1 to 4 support IEEE 802.3af standard
When the switch is in EXTEND mode and the data rate is 10 Mbps, ports 1 to 4 support long-distance data transmission up to 250 meters
All ports support 6 kV lightning protection
Supports Auto MDI/MDIX
Supports store-and-forward

Category: Switches

Description

Description

Datasheet: DS-3E0105P-E/M

User Manual: DS-3E0105P-E/M

Model	DS-3E0105P-E/M
Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af
LAN ports:	1 x RJ45 100 Base-T – Uplink, 4 x 10/100 Base-T ( 4 x PoE (802.3af) )
LED diodes:	Power, PoE, Link/Act
Transmission speed:	10 / 100 Mbps : 1 Port LAN + 4 LAN & PoE ports
Management via WWW / console:
Maximal output power:	15 W / port PoE
Maximal total power:	38 W
MAC addresses table:	1k – Auto update of MAC addresses table
Operation modes:	Extend On : 250 m, 10 Mbps @ UTP cat. 5e, 6 – 1 … 4 ports Extend Off : 100 m, 100 Mbps @ UTP cat. 5e, 6
Certificates:	CE
Operation temp:	0 °C … 40 °C
Power supply:	48 V DC / 800 mA (power adapter included)
Weight:	0.20 kg
Dimensions:	132 x 95 x 28 mm
