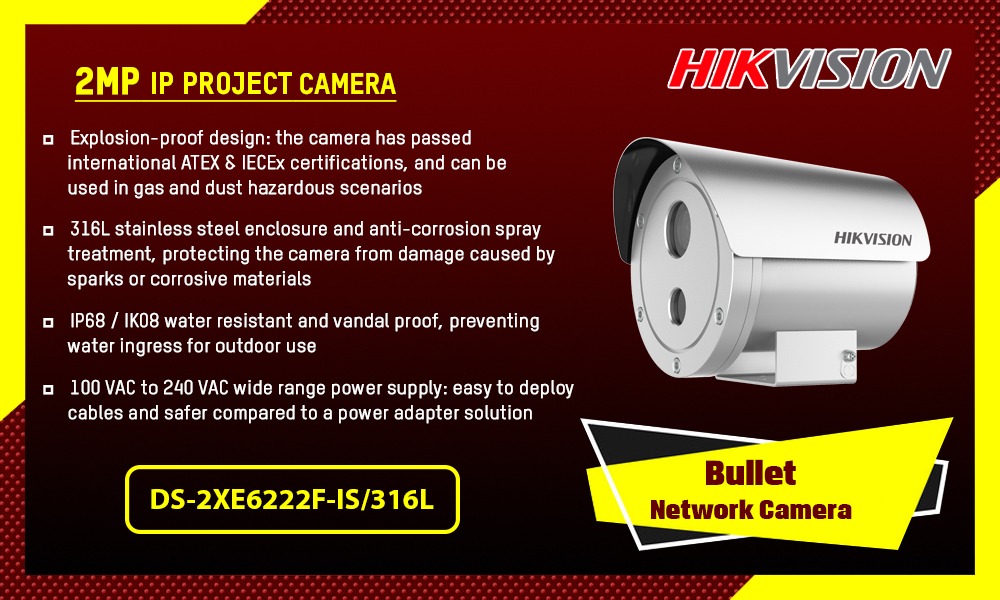

DS-2XE6222F-IS/316L

Description

Datasheet: DS-2XE6222F-IS/316L

User Manual: DS-2XE6222F-IS/316L

Lens

• FOV
  • 4 mm, horizontal field of view: 91°
  • 6 mm, horizontal field of view: 60°
  • 8 mm, horizontal field of view: 41.5°
  • 12 mm, horizontal field of view: 26.6°

Camera

• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Min. Illumination: 0.01 Lux @ (F1.2, AGC ON) , 0 Lux with IR on
• Shutter Speed: 1 s to 1/100,000 s
• Slow Shutter: Support
• DNR: 3D DNR
• WDR: 120 dB
• Day & Night: IR cut filter
• Lens: 4 mm, 6 mm, 8 mm, 12 mm
• Lens Mount: M12

Network

• Alarm Trigger: Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
• Network Storage: Support microSD/SDHC/SDXC card (up to 128 GB) local storage and NAS (NFS,SMB/CIFS), ANR
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP
• Standard: ONVIF (PROFILE S, PROFILE G), ISAPI
• General Function: Mirror, anti-flicker, heartbeat, watermark, password protection, privacy mask

Interface

• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• Alarm: 2 alarm inputs, 2 alarm outputs
• On-Board Storage
  • Built-in microSD/SDHC/SDXC slot, up to 128 GB

    *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.


• Image Enhancement: BLC/3D DNR
• Target Cropping: support
• Day/Night Switch: Auto/Schedule/Triggered by Alarm In
• Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
• Image Settings: Support rotate mode. Saturation, brightness, contrast, etc., adjustable by client software or web browser
• ROI (Region Of Interest): Support 4 customized region for each stream, and face dynamic tracking
• Max. Resolution: 1920 × 1080
• Main Stream
  • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream
  • 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
  • 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
• Third Stream
  • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
  • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 ×240)

General

• Power Consumption And Current: Max. 7W
• Power Supply
  • AC 100 V to 240 V, 0.1A, terminal block
  • PoE (802.3af, class 3), 0.2A
• Material: DS-2XE6222-IS/316L: Stainless steel 316L
• Operating Conditions: -30°C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
• Protection Level: IP68/IK10 water resistant and vandal proof
• Explosion-Proof Certificate
  • ATEX: II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68
  • IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68
    • For explosive gas atmospheres, the maximum surface temperature is 85°C;
    • For flammable dust atmospheres, the maximum surface temperature is 80°C;
    • IIC: for explosive gas atmospheres other than mines susceptible to firedamp;
    • For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
• IR Range: 30 m
• Dimensions (W × D × H)
  • Camera: 221.3 × 174 × 172 mm (8.71″× 6.85\” × 6.77\”)
  • Package: 435 × 255 × 285 mm (17.1 × 10\” × 11.2\”)”
• Weight (Without Hard Disk): 7.4 kg (3.4 lb.)

Compression Standard

• H.264+: Support
• H.265+: Support
• H.264 Type: Baseline profile/main profile/high profile
• Video Compression
  • Main stream: H.265/H.264
  • Sub stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
• H.265 Type: Main profile
• Video Bitrate: 32 Kbps to 16 Mbps

Smart Feature-Set

• Exception Detection: Scene change detection, defocus detection
• Line Crossing Detection: Cross a pre-defined virtual line
• Intrusion Detection: Enter and loiter in a pre-defined virtual region
• Behavior Analysis: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
• Region Entrance: Enter a pre-defined virtual region from the outside place
• Region Exit: Exit from a pre-defined virtual region
• Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
• Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
• Facial Recognition: Face detection recognition
