Description

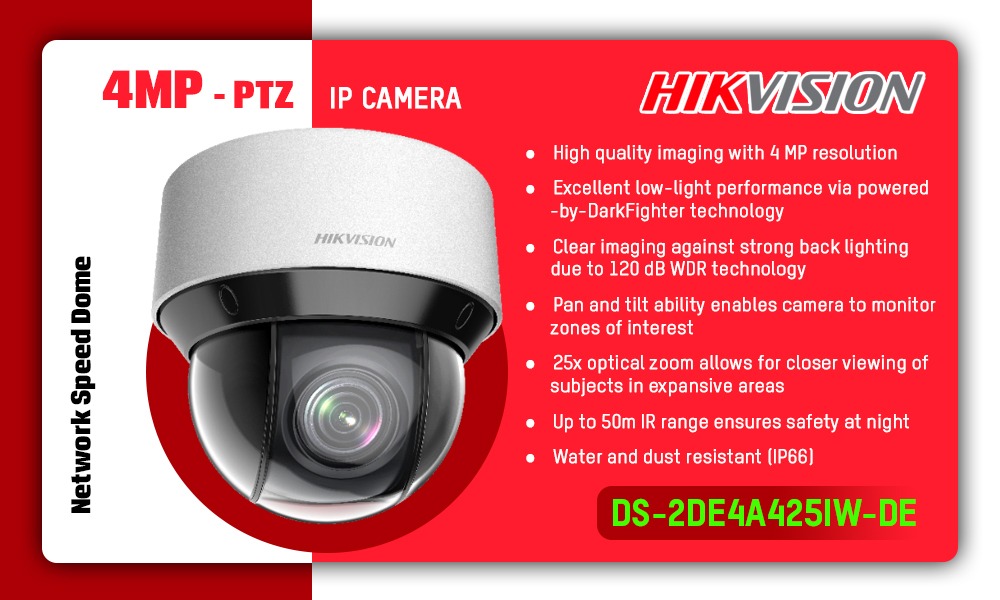

Datasheet: DS-2DE4A425IW-DE
User Manual: DS-2DE4A425IW-DE
Lens
- FOV: Horizontal field of view: 57.6° to 2.5° (wide-tele),Vertical field of view: 34.4° to 1.4° (wide-tele),Diagonal field of view: 64.5° to 2.9° (wide-tele)
- Zoom Speed: Approx. 3.2 s (optical lens, wide-tele)
- Working Distance: 10 mm to 1500 mm (wide-tele)
- Aperture Range: F1.6 to F3.5
- Focal Length: 4.8 mm to 120 mm, 25× optical
- Image Enhancement: HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
- Sub-Stream
- 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
- 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
- Max. Resolution: 2560 × 1440
- Main Stream
- 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),50fps (1920 × 1080, 1280 × 960, 1280 × 720)
- 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),60fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Third Stream
- 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
- 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Network
- Network Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
- Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- API: Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
- Simultaneous Live View: Up to 20 channels
- User/Host: Up to 32 users. ,3 levels: Administrator, Operator and User
- Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
- Web Browser: IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
- Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
- Alarm Linkage: Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Interface
- Alarm Output: 2-ch alarm input
- Alarm Input: 2-ch alarm input
- Audio Input: 1-ch audio input
- Audio Output: 1-ch audio output
- Network Interface: 1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3 at, class4)
Compression Standard
- H.264+: Support
- H.265+: Support
- H.264 Type: Baseline Profile/Main Profile/High Profile
- Video Compression
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264/MJPEG
- Third Stream: H.265/H.264/MJPEG
- H.265 Type: Main Profile
- Video Bitrate: 32 Kbps to 16384 Kbps
- Audio Compression: G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
- Audio Bitrate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps (MP2L2)
- SVC: Support
Camera Module
- AGC: Auto/Manual
- Image Sensor: 1/2.8″ progressive scan CMOS
- Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR
- White Balance: Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
- Shutter Time: 1/1 s to 1/30,000 s
- Day & Night: IR Cut Filter
- Digital Zoom: 16×
- Privacy Mask: 24 programmable privacy masks
- Focus Mode: Auto/Semi-automatic/Manual
- WDR: 120 dB WDR
Supplement Light
- IR Distance: 50 m
- Smart IR: Support
PTZ
- Movement Range (Pan): 360° endless
- Pan Speed: Configurable, from 0.1°/s to 300°/s,Preset Speed: 350°/s
- Movement Range (Tilt): From -5° to 90° (auto-flip)
- Tilt Speed: Configurable, from 0.1°/s to 160°/s,Preset Speed: 200°/s
- Proportional Zoom: Support
- Presets: 300
- Patrol Scan: 8 patrols, up to 32 presets for each patrol
- Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
- Power-Off Memory: Support
- Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- PTZ Status Display: Support
- Preset Freezing: Support
- Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
Smart Features
- Basic Event Detection: Motion Detection, Video Tampering Detection, Alarm Input, Alarm Output, Exception
- Detection: Audio Exception Detection, Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection
- Smart Tracking: Manual Tracking, Auto Tracking, Event Tracking
- Smart Record: ANR (Automatic Network Replenishment), Dual-VCA
- ROI: Main stream, sub-stream, and third stream respectively support four fixed areas.
General
- Material: ADC12, PC, PC+ABS, SUS304, POM
- Dimensions: Φ 169 mm × 161 mm (Φ 6.65″ × 6.34″)
- Weight: Approx. 2.45 kg (5.40 lb)
- Protection Level: IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Power: 12 VDC, 3.33 A & PoE (802.3 at), 42.5 to 57 VDC, 0.6 A, class4
Max.:18 W, including max. 5W for IR
- Working Temperature: -30°C to 65°C (-22°F to 149°F)
- Working Humidity: ≤ 90%
- Installation: Variable installation methods optional, including ceiling mounting (default), in-ceiling mounting, pendant mounting and wall mounting
