Description

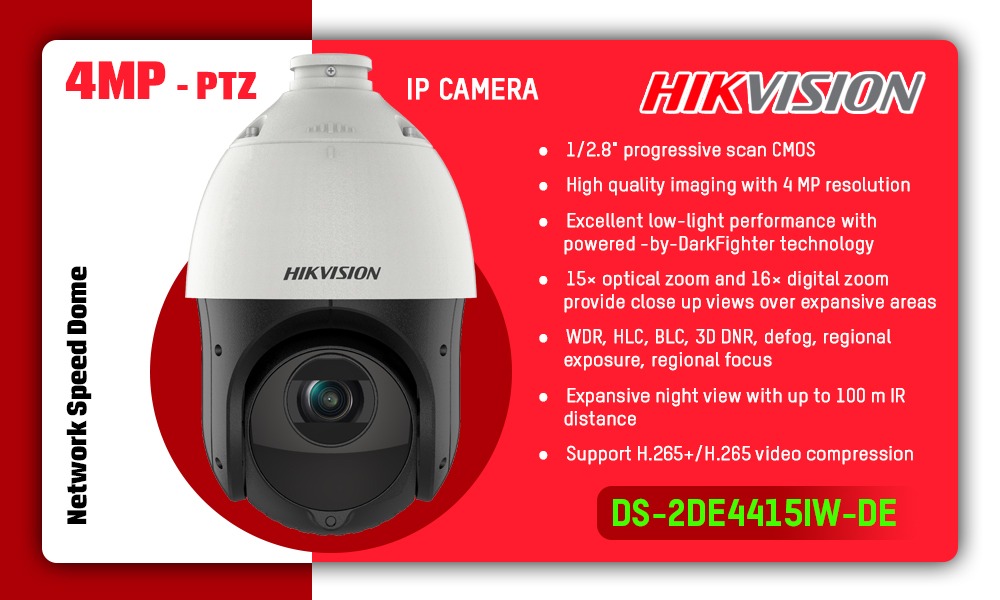

| Model | DS-2DE4415IW-DE | |
|---|---|---|
Camera |
||
| Image Sensor: | 1/2.8″ HD progressive scan CMOS | |
| Effective Pixels: | 2560(H)×1440(V) | |
| Signal System: | PAL/NTSC | |
| Minimum Illumination: | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR |
|
| White Balance: | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp | |
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| Smart defog: | Support | |
| WDR: | 120dB | |
| Shutter Time: | 1/1 to 1/30,000s | |
| Day& Night: | ICR | |
| Digital Zoom: | 16× | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| Lens | ||
| Focal Length: | 5 mm to 75 mm, 15× optical zoom | |
| Zoom Speed: | Approx. 2.3 s (optical lens, wide-tele) | |
| Field of View: | Horizontal field of view: 55° to 4°(wide-tele) Vertical field of view: 33° to 2.2° (wide-tele) Diagonal field of view: 61.5° to 4.6° (wide-tele) |
|
| Minimum Working Distance: | 100 mm to 1500 mm (wide-tele) | |
| Aperture Range: | F1.6 to F2.8 | |
Pan & Tilt |
||
| Pan Range: | 360°endless | |
| Pan Speed: | Configurable, from 0.1°/s to 80°/s, Preset speed: 80°/s |
|
| Tilt Range: | -15°-90° (Auto Flip ) | |
| Tilt Speed: | Configurable, from 0.1°/s to 80°/s, Preset speed: 80°/s |
|
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
| Number of Preset: | 300 | |
| Patrol: | 8 patrols, up to 32 presets for each patrol | |
| Pattern: | 4 pattern scans, record time over 10 minutes for each scan | |
| Power-off Memory: | Support | |
| Park Action: | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan | |
| PTZ Position Display: | ON/OFF | |
Infrared |
||
| IR Distance: | 100m | |
| IR irradiation angle: | Adjustable by zoom | |
Network |
||
| Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector | |
| Max.Image Resolution: | 2560 × 1440 | |
| Main Stream: | 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720) |
|
| Sub Stream: | 50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240) | |
| Video Compression: | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
|
| ROI encoding: | Support 4 areas with adjustable levels | |
| Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour | |
| Simultaneous Live View: | Up to 20 channels | |
| Three-Stream: | Support | |
| Storage: | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB | |
| Security Measures: | User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering | |
Client GUI |
||
| Client: | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect | |
General |
||
| Power Consumption: | 12 VDC, 2.0 A and PoE (802.3 at), 42.5 to 57 VDC, 0.6 A, class4 Max.: 18 W, including max. 7W for IR |
|
| Working Temperature/Humidity: | Outdoor: -30°C to 65°C (-22°F to 149°F) Humidity:≤ 90% |
|
| Protection Level: | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
|
| Material: | ADC 12, PC+10% GF | |
| Dimensions: | Φ 164.5 mm × 290 mm (Φ 6.48″ × 11.42″) | |
| Weight (approx.): | Approx. 2 kg (4.41 lb) | |
